Description

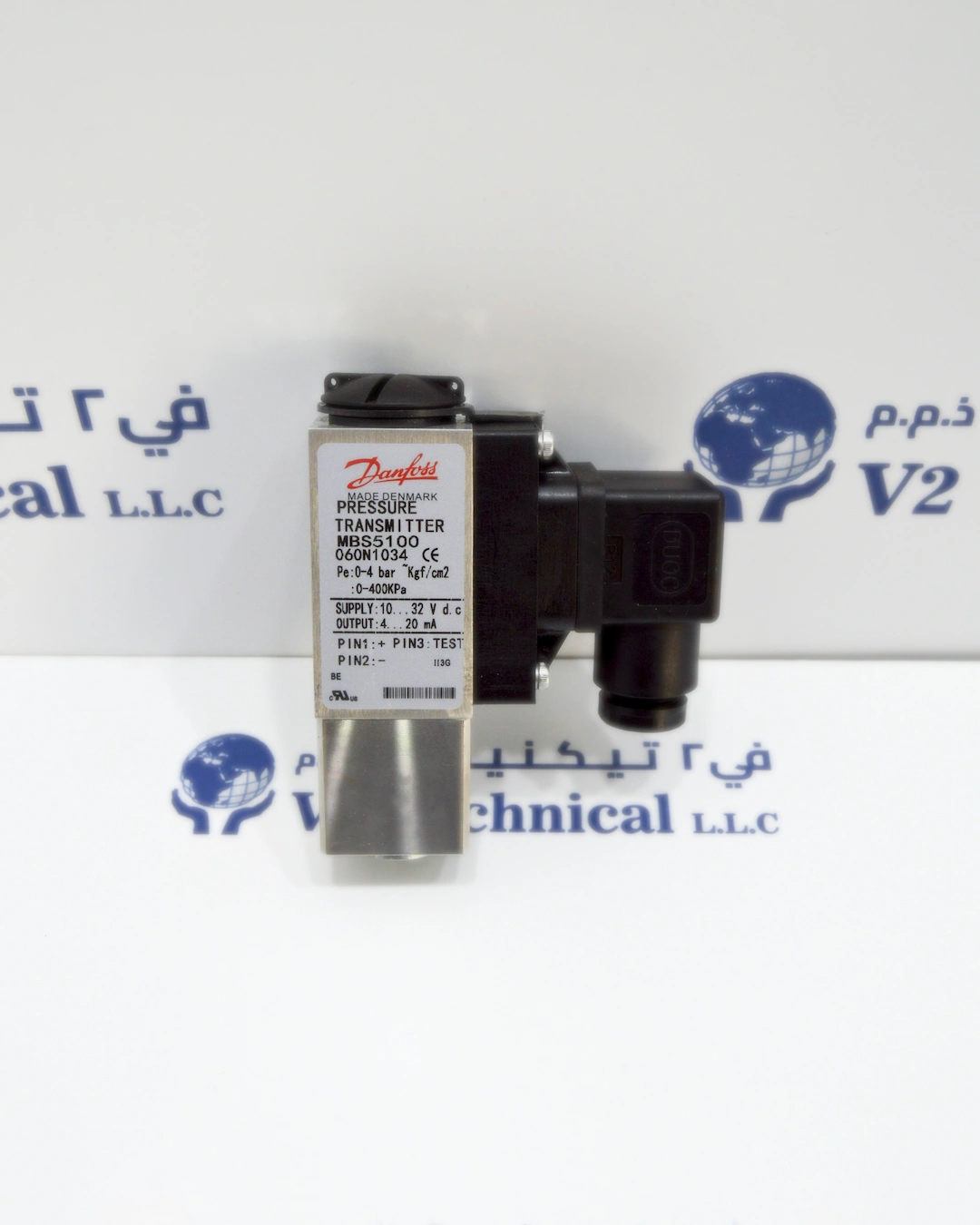

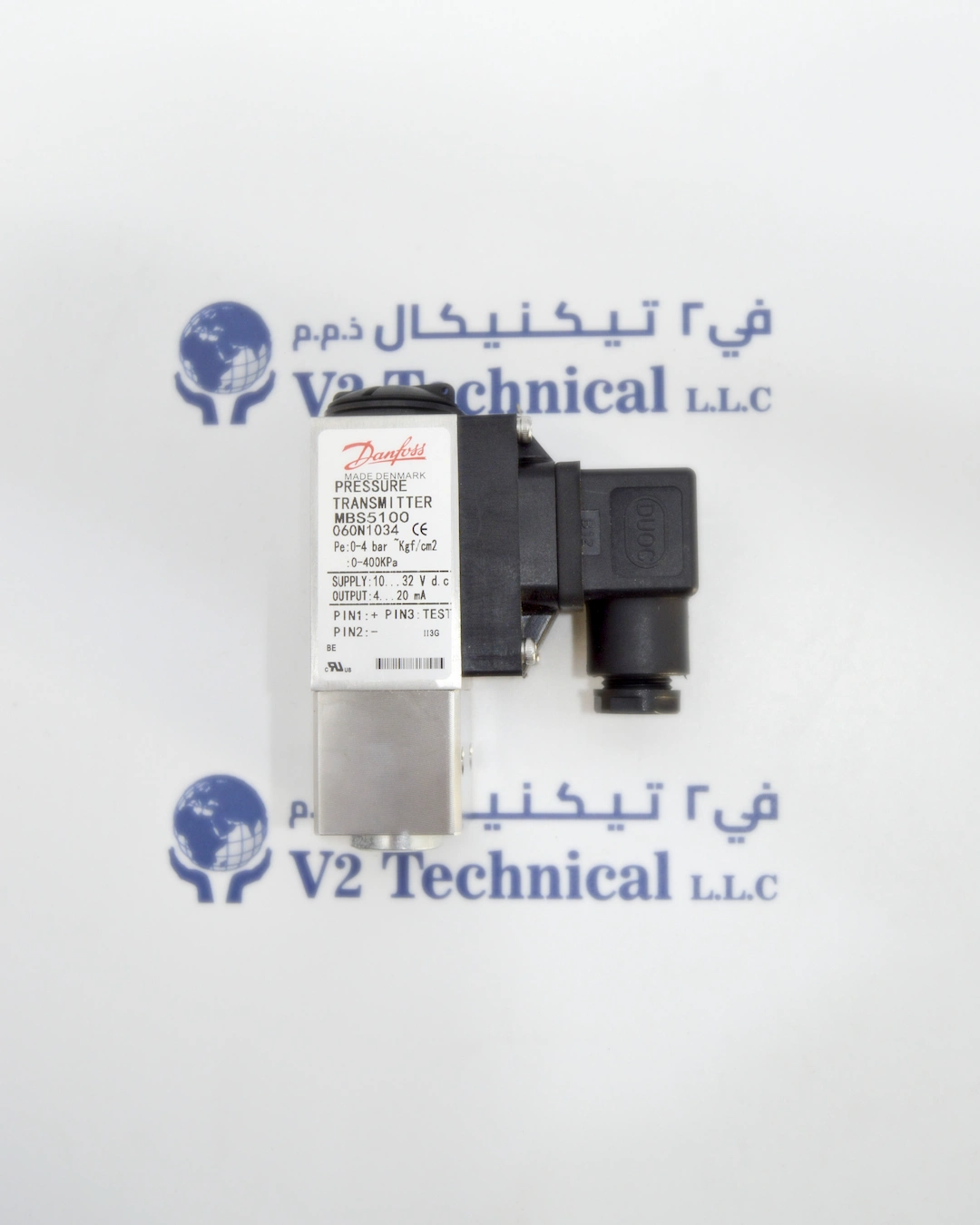

The Danfoss MBS5100 pressure transmitter UAE (Part No. 060N1034) is a premium ship-approved high-accuracy pressure transmitter from Danfoss — the world’s leading manufacturer of marine sensing and control solutions. Looking for a Danfoss MBS5100 pressure transmitter near you in UAE? V2 Technical LLC — Ajman’s leading marine spare parts supplier — stocks genuine Danfoss MBS5100 pressure transmitters for fast delivery across Dubai, Sharjah, Abu Dhabi, Ras Al Khaimah, Fujairah and the entire UAE and Gulf region.
The Danfoss MBS5100 block type pressure transmitter is a ship-approved high-accuracy pressure transmitter designed for use in almost all marine applications — including main reduction gear oil pressure monitoring, hydraulic system pressure measurement, fuel oil pressure sensing, lubricating oil pressure monitoring and cooling water pressure measurement.
Searching for Danfoss MBS5100 price in UAE? Danfoss pressure transmitter near me? Marine pressure transmitter supplier in Ajman or Dubai? Contact V2 Technical LLC today — the most trusted marine spare parts and instrumentation supplier near you in UAE.
Key Specifications (from product label and Danfoss datasheet):
– Brand: Danfoss
– Model: MBS5100
– Part Number: 060N1034
– Specification Key: MBS 5100-1611-A6DB04-4 / MBS 5100-1611-1DB04
– Pressure Range: 0–4 bar (0–58 psi / 0–400 kPa)
– Pressure Reference: Gauge (relative)
– Supply Voltage: 10–32V DC
– Output Signal: 4–20mA (current output)
– Electrical Connection: DIN 43650-A angular connector (PG11)
– Pressure Connection: G1/4 female with flange
– Weight: 350g
– PIN1: + (positive supply)
– PIN2: – (negative supply)
– PIN3: TEST
– Origin: Made in Denmark
– Certifications: CE, UL (cULus)
Key Features:
– Ship-approved marine pressure transmitter — designed specifically for marine applications
– High accuracy 4–20mA current output — suitable for long cable runs and direct PLC/SCADA integration
– Wide supply voltage range 10–32V DC — compatible with all marine and industrial control systems
– Block type compact stainless steel body — robust and corrosion-resistant for marine environments
– G1/4 female flange connection — standard marine and industrial fitting
– DIN 43650-A angular connector with PG11 cable gland — easy wiring in tight spaces
– Built-in test function (PIN3) for simple commissioning and diagnostics
– CE and UL certified — meets international safety standards
– Made in Denmark to Danfoss’s highest engineering standards
Where to buy Danfoss MBS5100 in UAE? Visit V2 Technical LLC at Shop 1, Jurf Industrial Area 2, Ajman — or order online at www.v2tkshop.com. We deliver genuine Danfoss pressure transmitters to Dubai, Sharjah, Abu Dhabi, Fujairah, Ras Al Khaimah and all UAE emirates. Best price on Danfoss MBS5100 near you in UAE. Same day response guaranteed.
Applications:
– Marine main reduction gear oil pressure monitoring
– Ship hydraulic system pressure measurement
– Fuel oil and lubricating oil pressure sensing
– Cooling water system pressure monitoring
– Compressor and pump discharge pressure measurement
– Offshore platform process pressure sensing
– Marine HVAC and refrigeration pressure monitoring
Are you searching for a Danfoss pressure transmitter supplier near you in UAE? A marine instrumentation distributor in Ajman or Dubai? V2 Technical LLC is your most trusted marine and industrial spare parts supplier in the UAE and Gulf region — serving vessel operators, offshore companies and marine engineers across the Middle East, West Africa and Mexico for over 20 years.
For full technical specifications and documentation, visit the official Danfoss website at www.danfoss.com
V2 Technical LLC — the #1 marine spare parts and instrumentation supplier in Ajman, UAE. Fast delivery across Dubai, Sharjah, Abu Dhabi and the entire GCC region.
