Manual Voltage Control

Description

The Basler Electric MVC-300 is a fully solid-state Electronic Manual Voltage Control unit designed to provide manual control of generator excitation voltage in the event of automatic voltage regulator (AVR) failure.

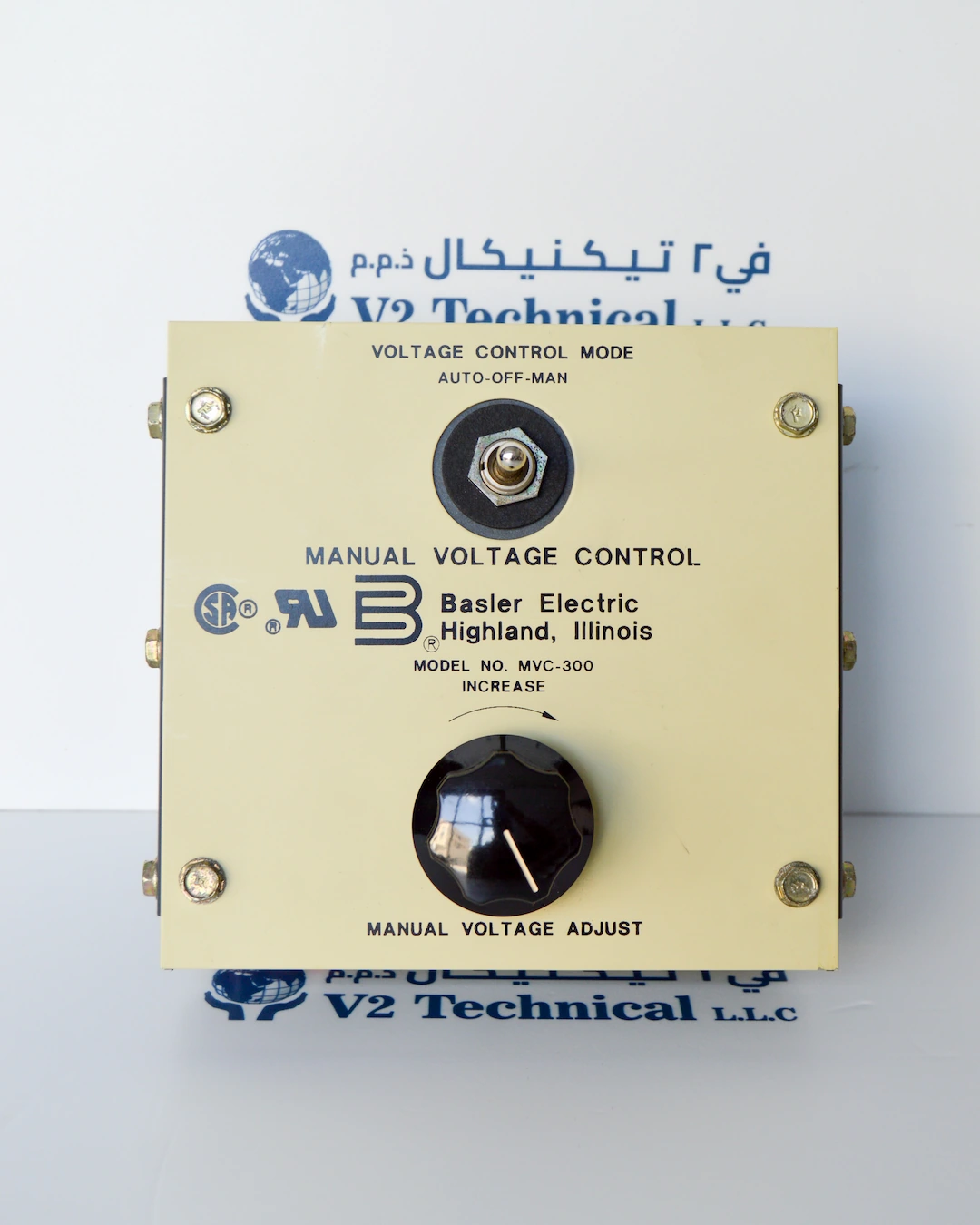

As seen clearly in the photo, the MVC-300 features a 3-position AUTO-OFF-MAN selector switch and a front-panel MANUAL VOLTAGE ADJUST potentiometer — allowing the operator to manually maintain generator output voltage to critical and emergency loads until repairs can be made.

Key Specifications:
– Brand: Basler Electric (Highland, Illinois, USA)
– Model: MVC-300
– Part Number: 9 1210 00 106
– Type: Electronic Manual Voltage Control
– Input: 120/240V AC, 50/60Hz / 32/63/125V DC, 7A
– Output: 32/63/125V DC, 7A / 120/240V AC, 840/1680VA
– Potentiometer: 10K ohm manual voltage adjust
– Power Dissipation: 30 Watts maximum
– Ambient Operating Temperature: -40°C to +70°C
– Storage Temperature: -65°C to +100°C
– Shock: Withstands up to 15 Gs (3 axes)
– Vibration: Withstands 5–500 Hz
– Weight: 1.670 kg (net)
– Housing: Wrap-around metal chassis

Key Features:
– Provides the ability to manually control excitation in the event of a regulator failure or sensing transformer failure — allowing the operator to maintain power to critical and emergency loads until a repair can be made
– AUTO-OFF-MAN 3-position selector switch on front panel
– Manual voltage adjust potentiometer for precise output control
– Completely solid state — 120/240V AC operation with multiple field output ratings
– Automatic voltage build-up circuit included
– Compatible with all Basler voltage regulators rated at 7A continuous and below
– Front panel detachable for remote panel mounting

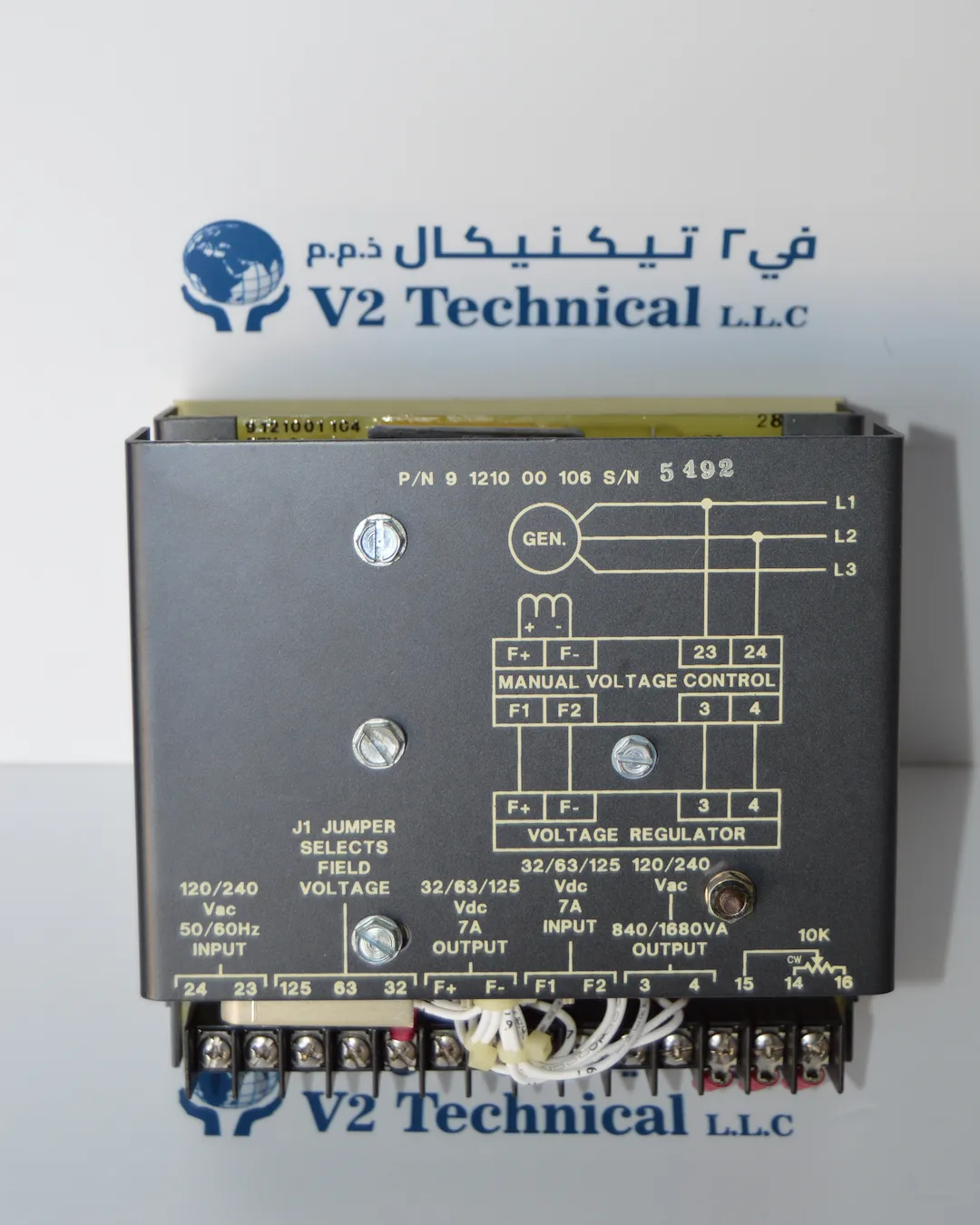

– Terminal strip on rear for easy installation

Applications:
– Marine vessel generator manual voltage control
– Emergency generator excitation backup control
– Ship power management systems
– Offshore platform generator control panels
– Industrial generator manual backup systems
– Standby power system voltage control
