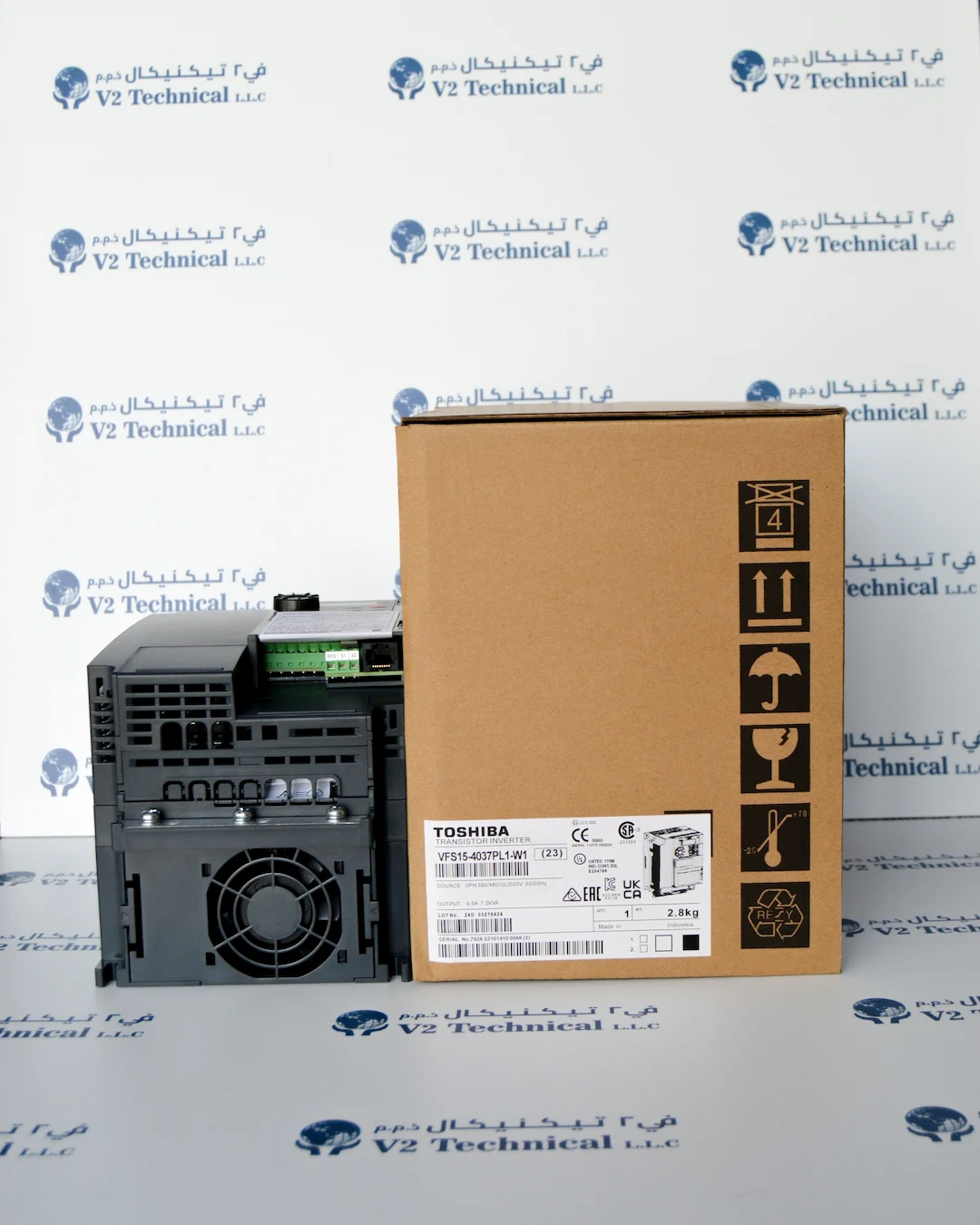

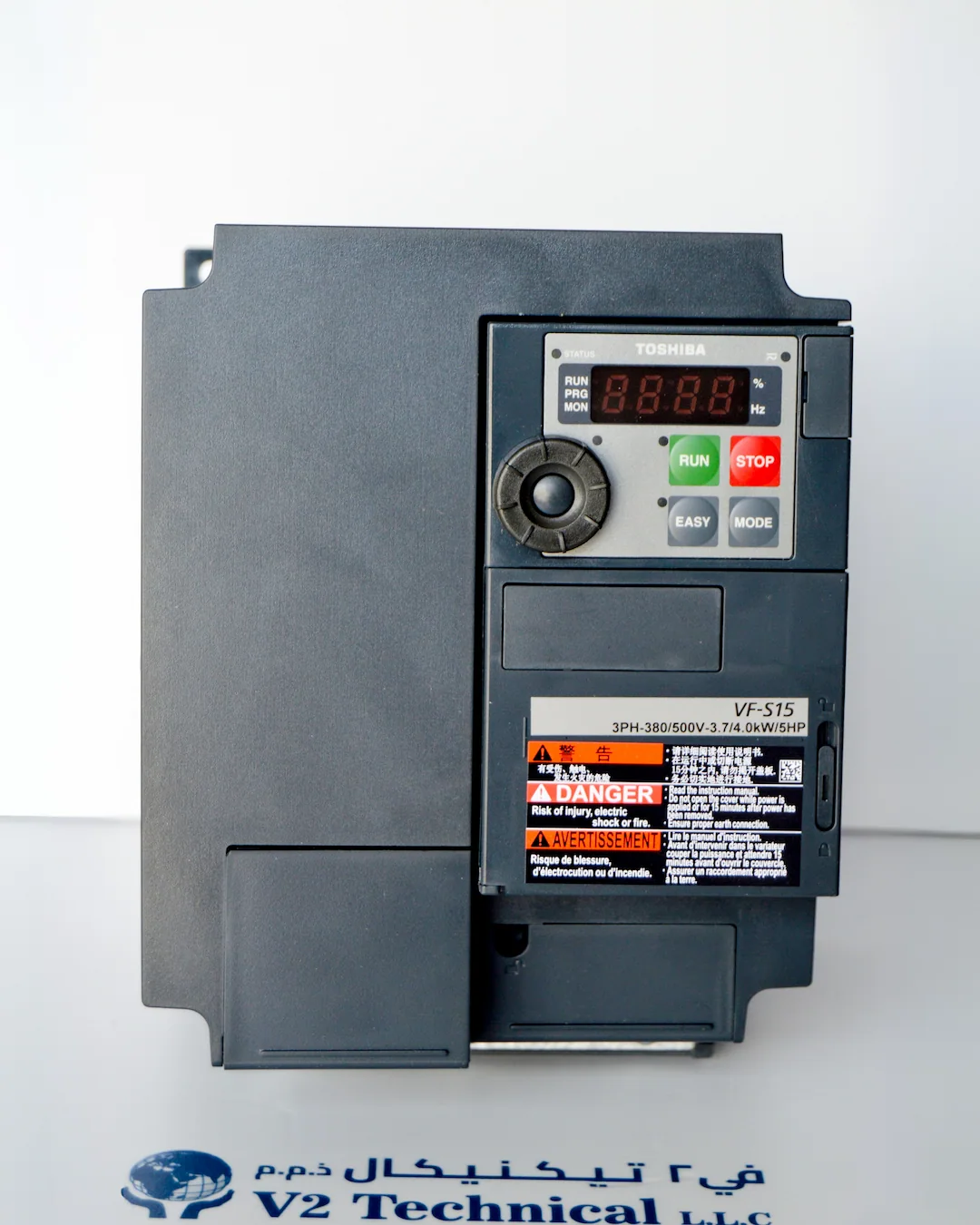

Toshiba VFS15-4037PL1-W1 VFD – 5HP/4kW, 3-Phase

Description

The Toshiba VFS15-4037PL1-W1 variable frequency drive UAE is a compact, heavy-duty adjustable speed micro-drive from Toshiba’s trusted VF-S15 series — one of the most capable and cost-effective VFDs available for marine and industrial motor control applications.

This Toshiba VFS15-4037PL1-W1 VFD is engineered for controlling a wide range of variable and constant torque applications aboard marine vessels and in industrial facilities, including pumps, fans, compressors, conveyors, cranes and hoists. With a built-in high-attenuation EMC filter and world model designation, this drive is ready for global use including UAE marine and industrial environments.

Key Specifications:
– Brand: Toshiba
– Model: VFS15-4037PL1-W1
– Series: VF-S15 (S15 Microdrive)
– Power: 5 HP / 4.0 kW (Heavy Duty)
– Input Voltage: 3-Phase 380–500V AC (50/60Hz)
– Output Current: 9.5A
– Overload Rating: 150% for 60 seconds / 110% continuous
– Frequency Range: 0.1 to 500.0 Hz
– Default Setting: 0.5 to 60 Hz
– Maximum Frequency: 30 to 500 Hz
– Control Method: Sinusoidal PWM / Sensorless Vector
– Enclosure: IP20
– EMC Filter: Built-in high-attenuation
– Communication: RS485 (2-wire)
– Display: LED with RUN/PRG/MON indicators
– Dimensions: 5.5″ W x 5.9″ D x 6.7″ H
– Weight: 4 kg

Key Features:
– Heavy-duty 150%/60s overload rating — one of the most robust in its class
– Supports Permanent Magnet (PM) motors for greater flexibility and energy savings
– Advanced sensorless vector control for 0.1% speed regulation
– Built-in high-attenuation EMC filter — world model compliant
– RS485 communication port for network integration
– Expanded PID control for precise level and process control
– Past trip monitoring — stores last 8 faults with at-trip data
– Three programmable analog inputs: 4–20mA, 0–10VDC, ±10VDC
– Programmable without three-phase power using +SU terminal
– DIN rail mounting kit available
– Operates up to 50°C without derating

Applications:
– Marine vessel pump and fan motor speed control
– Ship HVAC and compressor motor drives
– Deck crane and hoist motor control
– Conveyor and cargo handling speed control
– Offshore platform motor drive systems
– Industrial machinery and process control
