Description

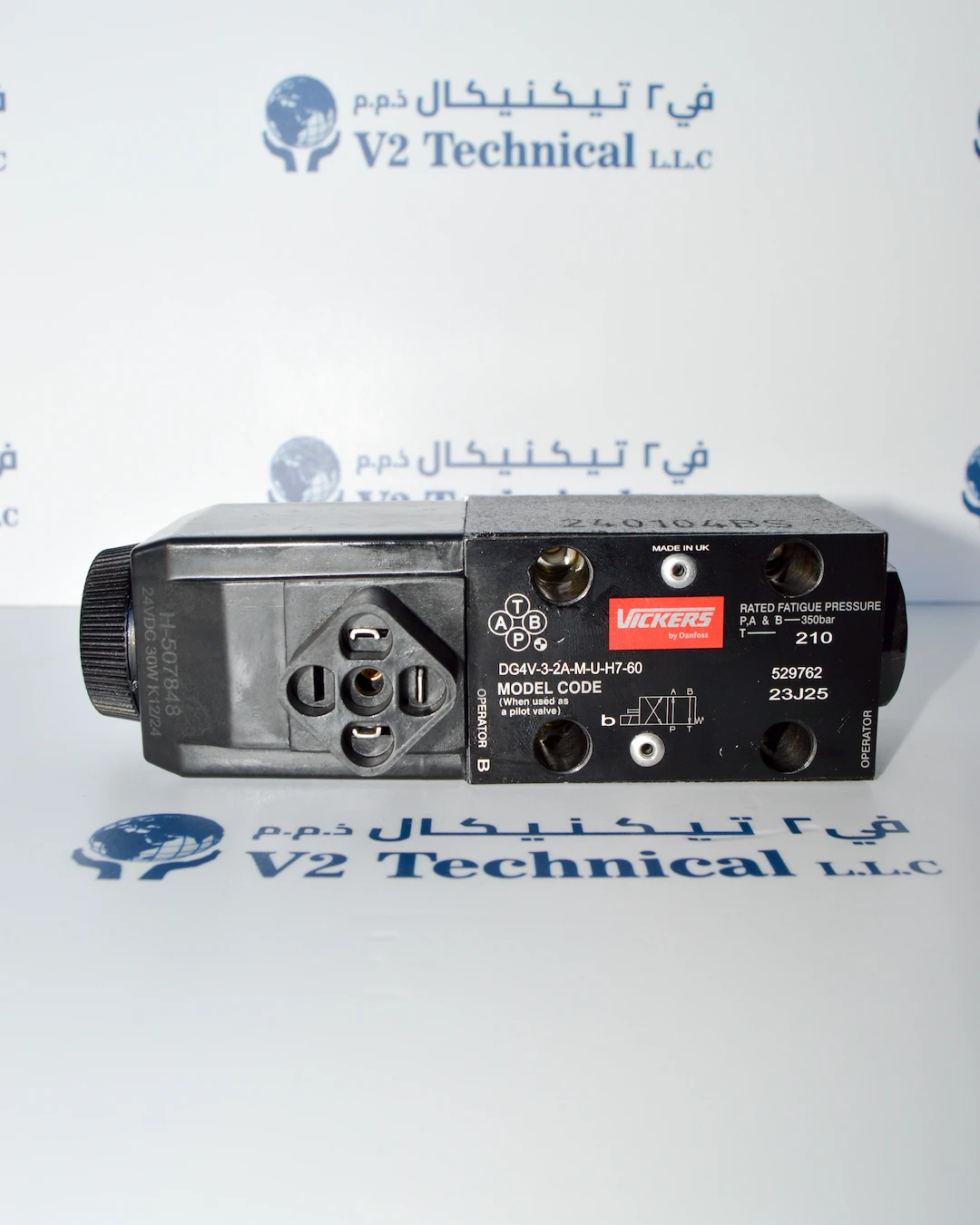

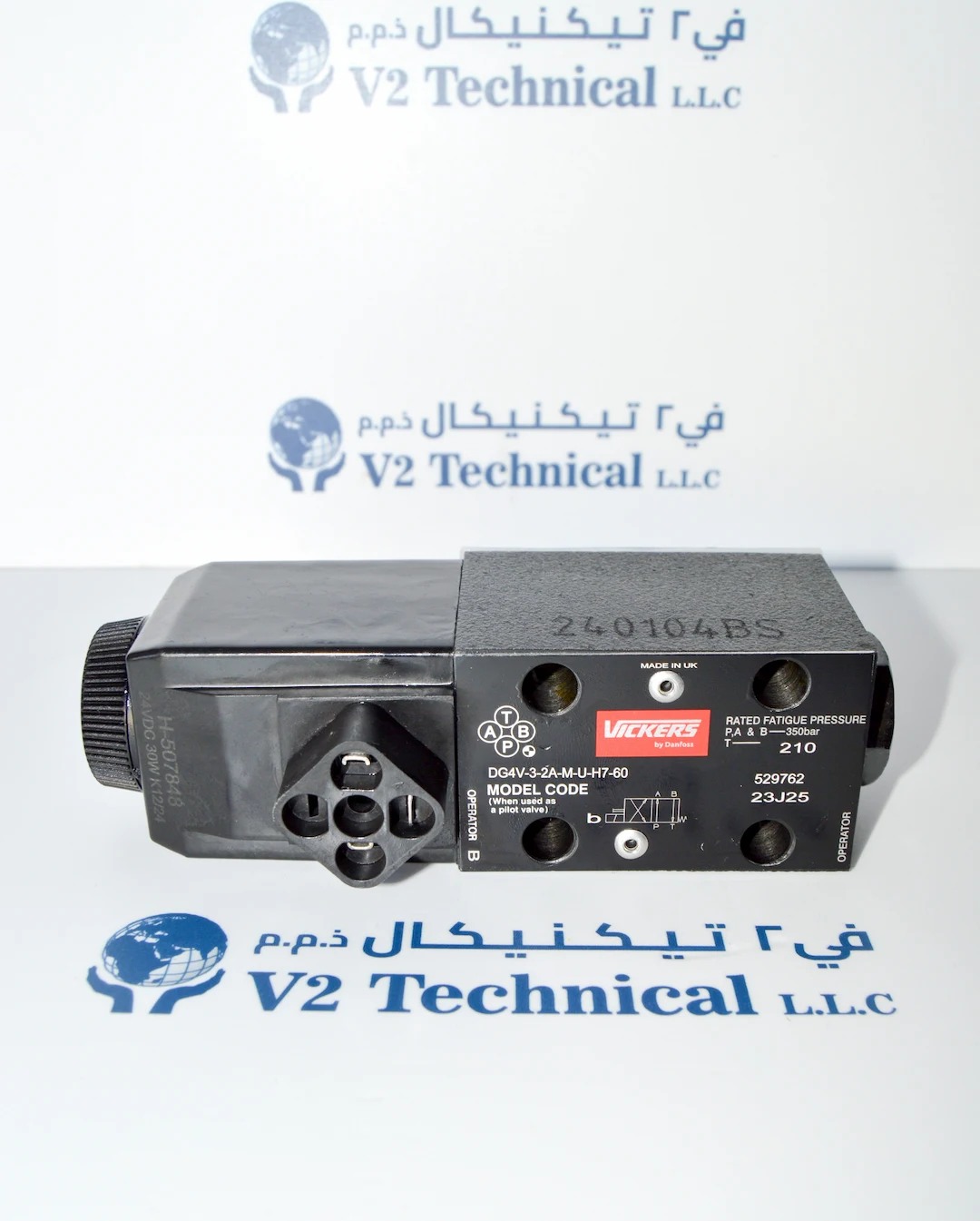

The Vickers DG4V-3-2A-M-U-H7-60 directional control valve UAE (Part No. 529762, Model Code 23J25) is a premium 4-way solenoid operated hydraulic directional control valve from Vickers (Eaton / Danfoss) — one of the world’s most trusted names in industrial and marine hydraulic valves. Looking for a Vickers DG4V-3-2A directional valve near you in UAE? V2 Technical LLC — Ajman’s leading marine and industrial spare parts supplier — stocks genuine Vickers hydraulic directional control valves for fast delivery across Dubai, Sharjah, Abu Dhabi, Ras Al Khaimah, Fujairah and the entire UAE and Gulf region.
The Vickers DG4V-3-2A-M-U-H7-60 is a solenoid operated directional control valve for directing and stopping flow at any point in a hydraulic system, providing efficient control of greater hydraulic powers without increasing solenoid power consumption. With 350 bar rated fatigue pressure and 80 L/min maximum flow, this D03/CETOP 3 valve is engineered for the most demanding marine and industrial hydraulic applications.
Searching for Vickers DG4V-3-2A price in UAE? Vickers directional valve near me? Marine hydraulic valve supplier in Ajman or Dubai? Contact V2 Technical LLC today — the most trusted marine spare parts and hydraulic equipment supplier near you in UAE.
Key Specifications (from product label and datasheet):
– Brand: Vickers (Eaton / Danfoss)
– Model: DG4V-3-2A-M-U-H7-60
– Part Number: 529762
– Model Code: 23J25
– Series Number: 240104BS
– Valve Size: D03 / CETOP 3
– Type: 4-Way Solenoid Operated Directional Control Valve
– Spool Type: 2A — Spring Offset, Closed Centre (All Ports Blocked)
– Actuation: Single Solenoid, Spring Return
– Coil Voltage: 24V DC
– Coil Power: 30W
– Coil Reference: H-507848 K12/24
– Max Operating Pressure (P,A,B): 350 bar (5075 PSI) rated fatigue pressure
– Max Tank Pressure (T): 210 bar for DC coils
– Max Flow Rate: 80 L/min (21 GPM)
– Electrical Connector: DIN 43650 (ISO 4400) type
– Seal Material: Buna-N (NBR)
– Mounting: Subplate/manifold (CETOP 3 / D03)
– Origin: Made in UK
Key Features:
– Efficient control of greater hydraulic powers without increasing solenoid power consumption
– High performance 350 bar rated fatigue pressure — suitable for the most demanding marine hydraulic systems
– 210 bar tank pressure rating for DC coils — high back pressure tolerance
– Single solenoid spring-return 2A spool — spring offset to one position on de-energisation
– Wet-pin solenoid design — oil immersed for reliable long-life operation
– DIN 43650 connector — simple, secure electrical connection
– D03/CETOP 3 subplate mounting — industry standard, easy replacement
– Manual override on both operators — emergency and testing operation
– Buna-N seals — compatible with petroleum-based hydraulic oil
– Made in UK to Vickers/Eaton highest quality standards
Where to buy Vickers DG4V-3-2A directional valve in UAE? Visit V2 Technical LLC at Shop 1, Jurf Industrial Area 2, Ajman — or order online at www.v2tkshop.com. We deliver genuine Vickers hydraulic valves to Dubai, Sharjah, Abu Dhabi, Fujairah, Ras Al Khaimah and all UAE emirates. Best price on Vickers directional valves near you in UAE. Same day response guaranteed.
Applications:
– Marine vessel hydraulic directional control systems
– Ship deck machinery and crane hydraulics
– Hydraulic cylinder and motor control circuits
– Offshore platform hydraulic power units
– Industrial hydraulic press and machine tool circuits
– Marine steering and cargo handling hydraulics
Are you searching for a Vickers valve supplier near you in UAE? A marine hydraulic valve distributor in Ajman or Dubai? V2 Technical LLC is your most trusted marine and industrial spare parts supplier in the UAE and Gulf region — serving vessel operators, offshore companies and marine engineers across the Middle East, West Africa and Mexico for over 20 years.
For full technical specifications and documentation, visit the official Eaton Vickers website at www.eaton.com/hydraulics
V2 Technical LLC — the #1 marine spare parts and hydraulic equipment supplier in Ajman, UAE. Fast delivery across Dubai, Sharjah, Abu Dhabi and the entire GCC region.
