TODO – Coupling – DN100

Description

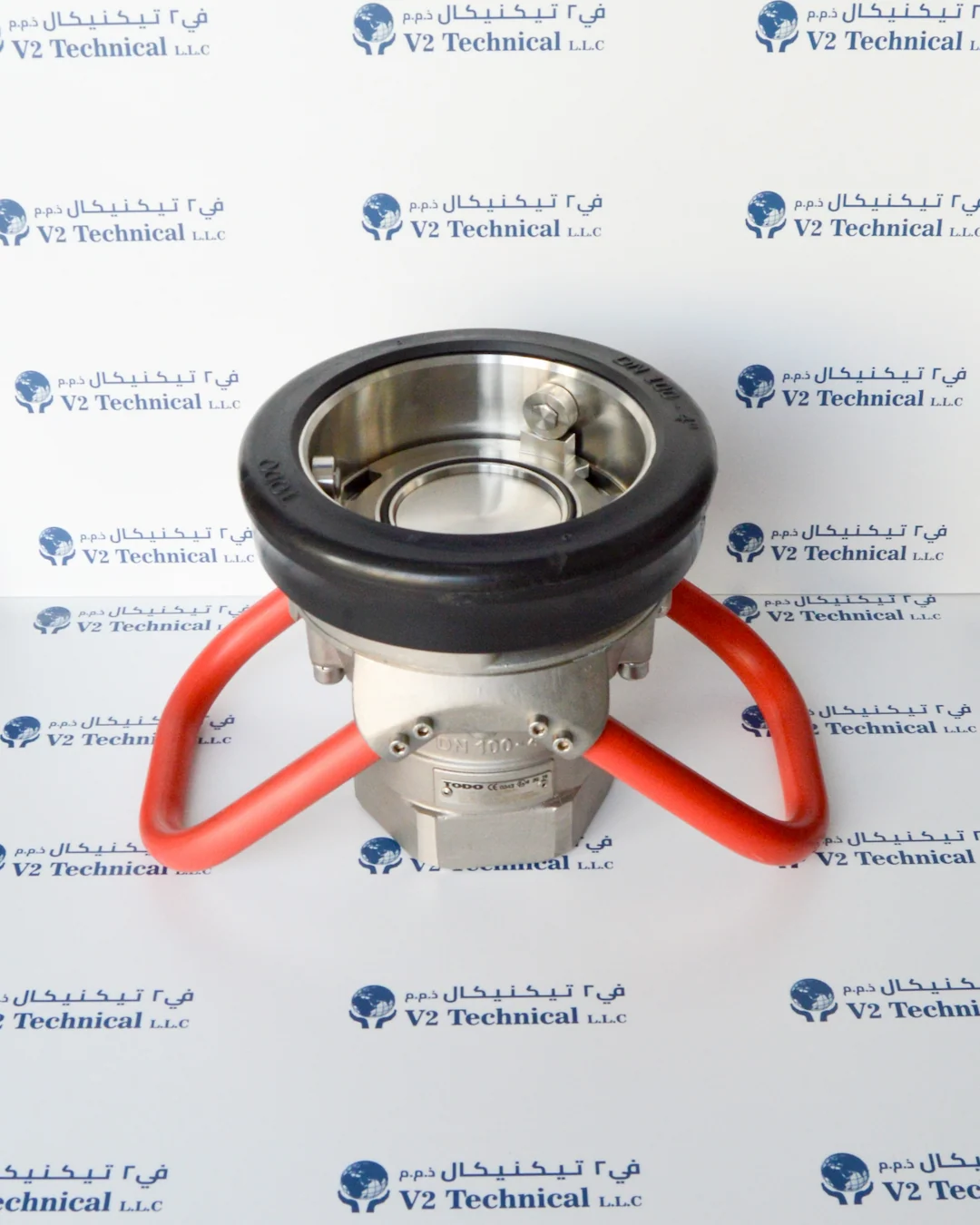

The TODO-MATIC dry break coupling DN100 UAE is a premium 4-inch (DN100) stainless steel 316L dry-break coupling from TODO — the world’s leading manufacturer of dry-break fluid transfer couplings for offshore, marine and petrochemical applications.

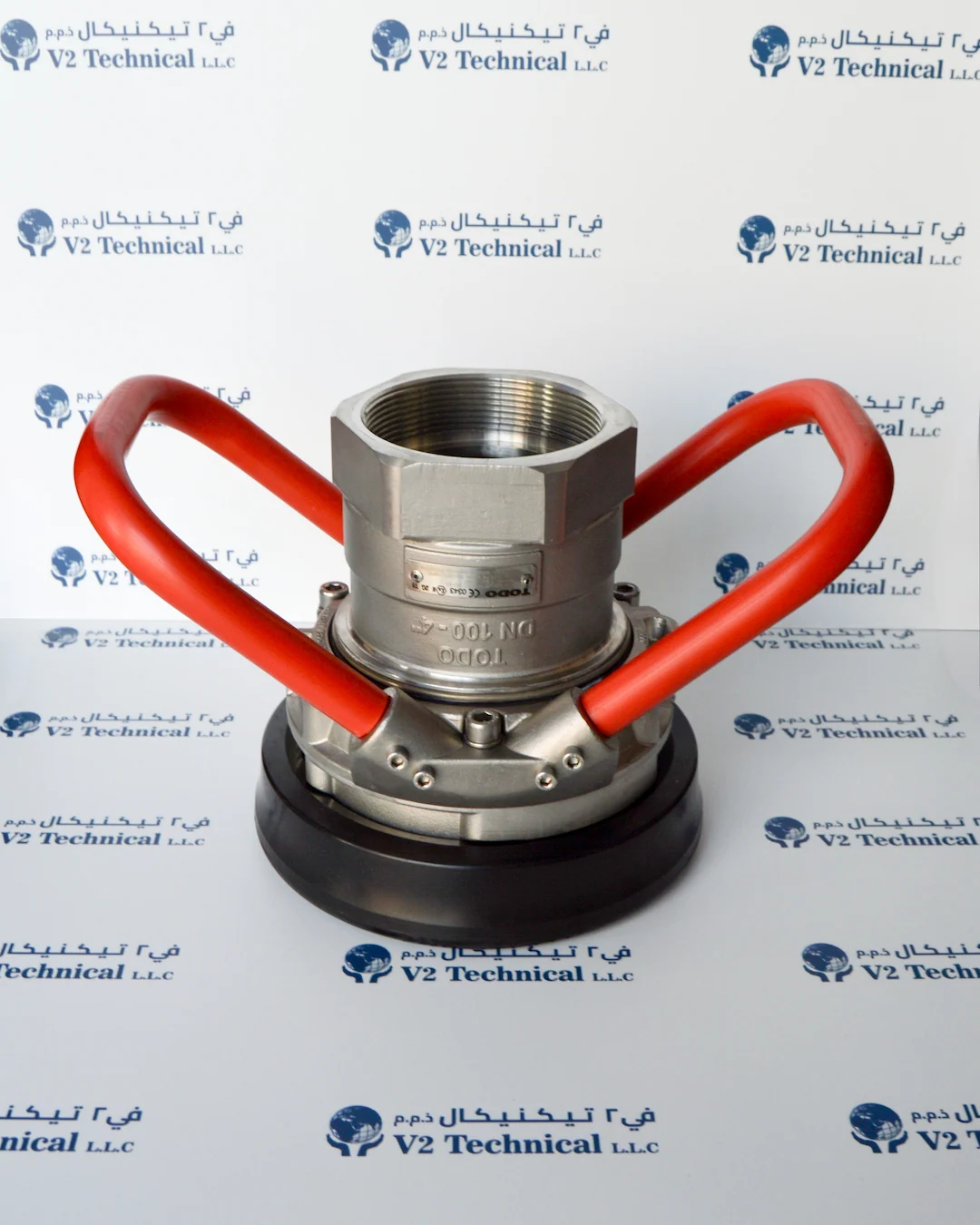

This TODO-MATIC DN100 dry break coupling is the hose unit of the TODO-MATIC system — featuring distinctive red ergonomic safety handles for easy gripping during connection and disconnection, an internal valve that remains closed until fully mated to the tank unit, and a 4″ BSP/NPT female thread connection. Once the hose unit is rotated 110° clockwise onto the tank unit, both internal valves open simultaneously to allow full fluid flow — and close again instantly when disconnected, ensuring zero spillage and zero leakage every time.

Key Specifications:
– Brand: TODO (TODO-MATIC®)
– Model: TODO-MATIC Hose Unit DN100 (4″)
– Size: DN100 (4 inch)
– Body Material: Stainless Steel 316L
– Seal Material: FKM (Viton®) — standard
– Working Pressure (SS): 25 bar (363 PSI)
– Temperature Range: -20°C to +80°C
– Connection: Female BSP/NPT internal thread (4″)
– Handle: Red ergonomic safety handles
– Operation: 110° clockwise rotation to couple
– Certifications: NATO STANAG 3756, CE

Key Features:
– Dry-break technology — zero spillage and zero leakage on disconnection
– Internal valves close automatically before disconnection — eliminates fluid loss
– Stainless steel 316L body — excellent corrosion resistance for marine environments
– FKM (Viton) seals — compatible with fuels, oils and chemicals
– Red ergonomic safety handles for secure grip in all conditions
– Optional selectivity coding — prevents cross-contamination of different media
– Optional magnetic switch for remote PLC coupling status monitoring
– Recognised and specified by major oil companies and offshore operators worldwide
– NATO STANAG 3756 certified
– Popular 4″ and 6″ sizes widely used for offshore fluid transfer

Applications:
– Offshore platform fuel and chemical transfer
– Marine vessel ship-to-shore fuel transfer
– Petrochemical and chemical tanker fluid transfer
– Hazardous liquid loading and offloading
– Marine bunkering operations
– Oil rig and platform refuelling systems

For full technical specifications visit the official TODO website at www.todocouplings.com
