Description
The Schneider Electric ATV630D18N4 variable speed drive UAE is a high-performance Altivar Process 630 drive from Schneider Electric the global leader in energy management and industrial automation. Looking for a Schneider Electric ATV630 drive near you in UAE? V2 Technical LLC Ajman’s leading marine spare parts and electronic components supplier stocks Schneider Altivar drives for fast delivery across Dubai, Sharjah, Abu Dhabi, Ras Al Khaimah, Fujairah and the entire UAE and Gulf region.

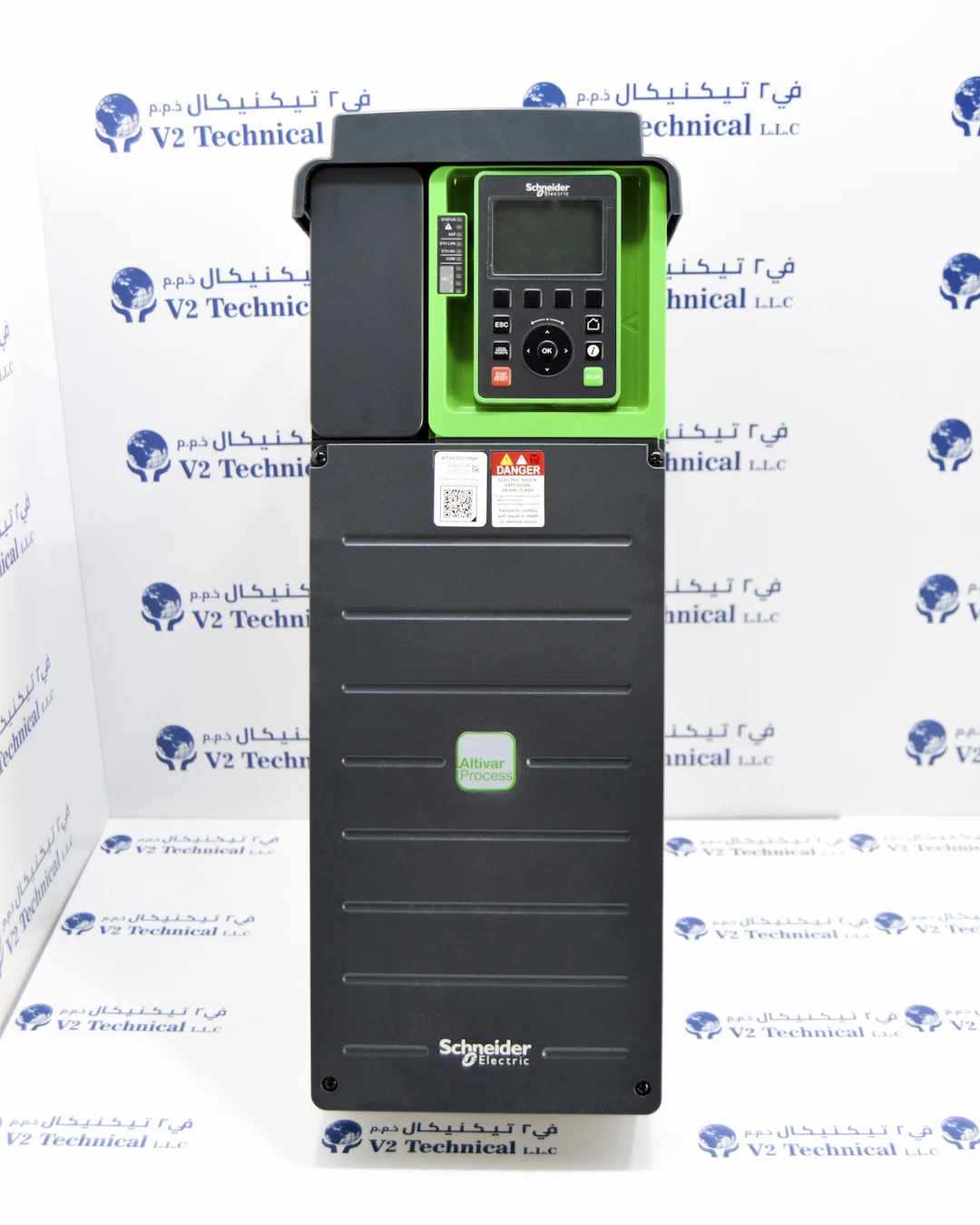

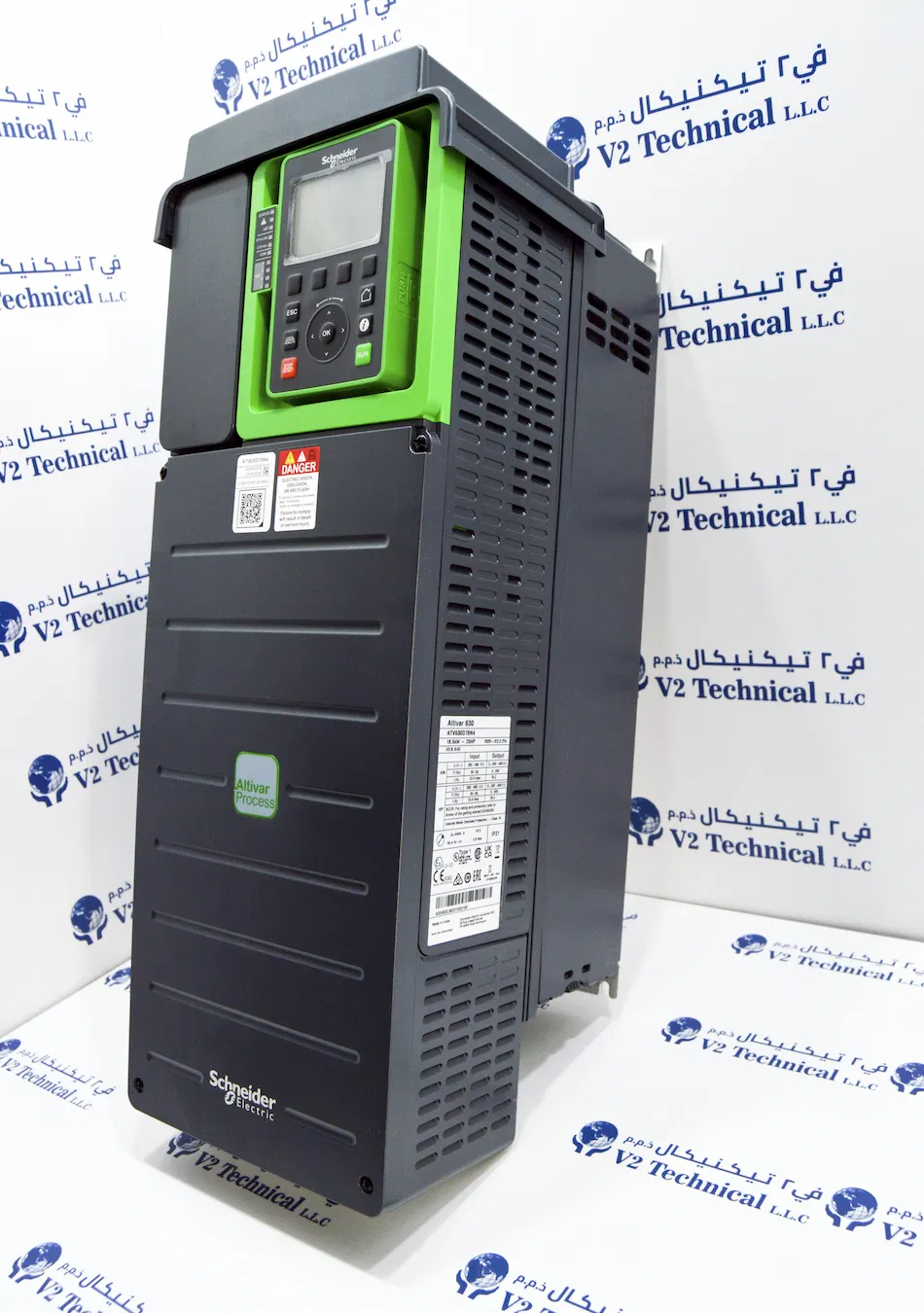

The Schneider Electric ATV630D18N4 is a wall-mount variable speed drive designed for process and utility applications. It controls three-phase asynchronous and permanent-magnet synchronous motors and is widely used on centrifugal pumps, fans, blowers and compressors. Embedded Ethernet, energy-monitoring functions and predictive maintenance tools make it ideal for marine HVAC, ballast, cooling water and machinery room systems where energy savings and reliability matter.
Searching for Schneider Electric ATV630D18N4 price in UAE? Altivar 630 drive near me? Marine VFD supplier in Ajman or Dubai? Contact V2 Technical LLC today the most trusted marine spare parts and electronic components supplier near you in UAE.

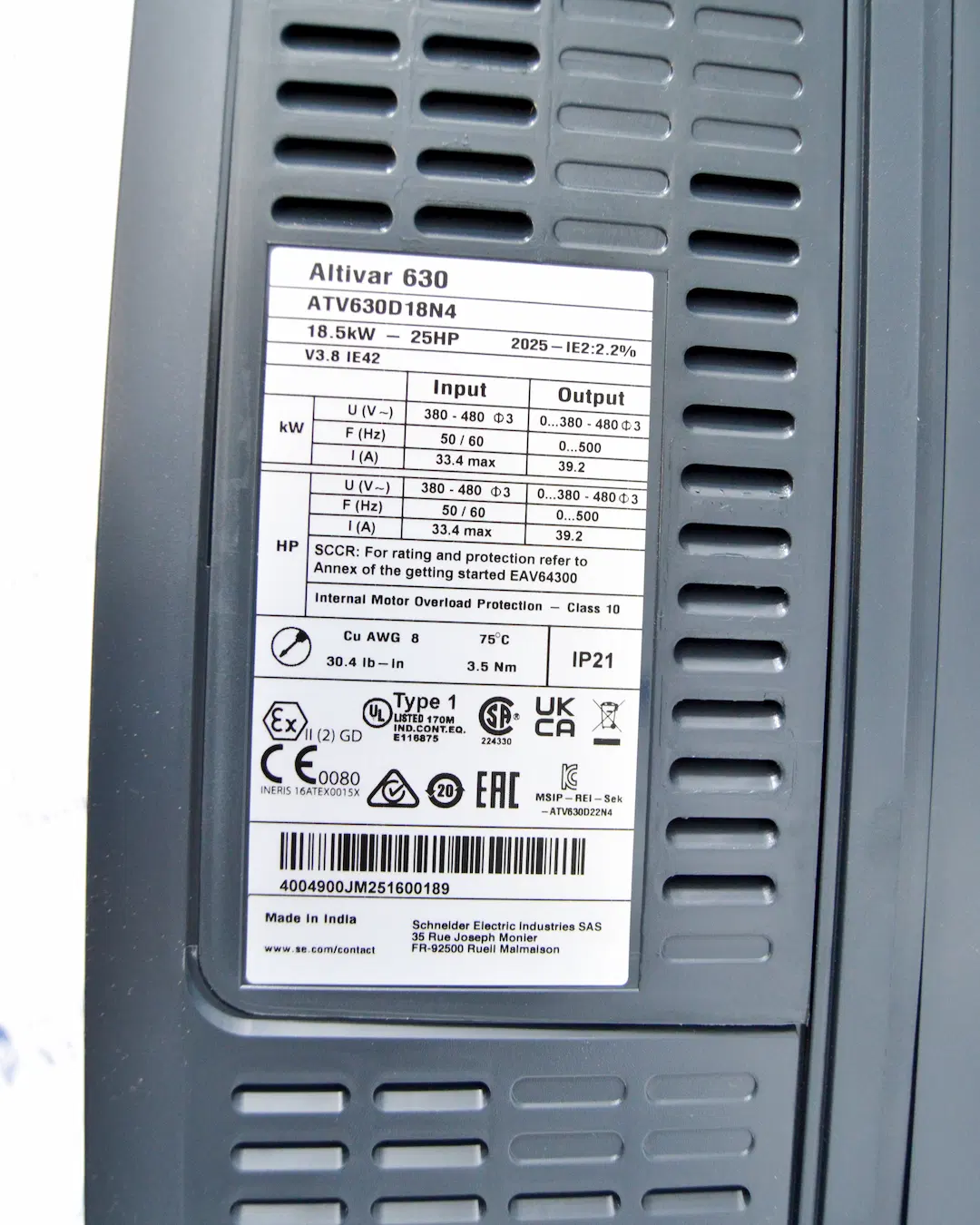

Key Specifications (from product label and Schneider datasheet):
• Brand: Schneider Electric Industries SAS
• Range: Altivar Process ATV600
• Model: ATV630D18N4 (Altivar 630)
• Motor Power: 18.5 kW / 25 HP (normal duty) | 15 kW / 20 HP (heavy duty)
• Input Voltage: 3-Phase 380–480V (-15%/+10%)
• Input Frequency: 50/60 Hz
• Input Current: 33.4A max (at 380V normal duty)
• Output Voltage: 0–380/480V, 3-Phase
• Output Frequency: 0–500 Hz
• Continuous Output Current: 39.2A at 4 kHz (normal duty) | 31.7A (heavy duty)
• Maximum Transient Current: 43.1A for 60s (normal duty) | 47.6A for 60s (heavy duty)
• Switching Frequency: 4 kHz nominal, 2–12 kHz adjustable
• Motor Overload Protection: Internal, Class 10
• Protection Rating: IP21 / UL Type 1
• Cooling: Forced convection
• EMC Filter: Integrated (EN/IEC 61800-3 category C2/C3)
• Terminal Torque: 3.5 Nm (30.4 lb-in), Cu AWG 8, 75°C
• Dimensions (W × H × D): 211 × 546 × 232 mm
• Weight: Approx. 14.2 kg
• Noise Level: Approx. 59.5 dB
• Firmware: V3.8 IE42
• Origin: Made in India
Certifications and Safety:
• ATEX II (2) GD (INERIS 16ATEX0015X)
• CE, UL Listed (Type 1), CSA, UKCA, RCM, EAC, KC
• STO (Safe Torque Off) SIL 3
• Energy efficiency class IE2
I/O and Communication:
• 8 discrete inputs, 3 relay outputs
• 3 analogue inputs / 2 analogue outputs
• Embedded Ethernet (Modbus TCP) and Modbus serial
• 16 preset speeds
Key Features:
• Controls asynchronous and permanent magnet synchronous motors
• Constant torque, variable torque and optimised torque modes
• Built-in EMC filter no external filter needed in most installations
• Embedded Ethernet with web server for easy configuration and monitoring
• Integration of actual pump curves to optimise the system operating point
• Sensorless estimated flow rate and installation energy drift detection
• Predictive and preventive maintenance tracking
• Conformal-coated boards resist chemical and airborne pollution — suited to marine environments
• Graphic display terminal with multilingual interface
• Replaces the earlier ATV61HD18N4 range
Where to buy Schneider Electric ATV630D18N4 in UAE? Visit V2 Technical LLC at Shop 1, Jurf Industrial Area 2, Ajman or order online at www.v2tkshop.com. We deliver Schneider drives and marine spare parts to Dubai, Sharjah, Abu Dhabi, Fujairah, Ras Al Khaimah and all UAE emirates. Best price on Altivar drives near you in UAE. Same day response guaranteed.
Applications:
• Marine vessel pump, fan and compressor speed control
• Ship HVAC chiller and ventilation systems
• Ballast, cooling water and seawater pump drives
• Offshore platform process pumps and fans
• Industrial water treatment and utilities
• Replacement for ATV61HD18N4 drives
Are you searching for a Schneider Electric drive supplier near you in UAE? An Altivar distributor in Ajman or Dubai? V2 Technical LLC is your most trusted marine and industrial spare parts supplier in the UAE and Gulf region serving vessel operators, offshore companies and marine engineers across the Middle East, West Africa and Mexico for over 20 years.
V2 Technical LLC the #1 marine spare parts and electronic components supplier in Ajman, UAE. Fast delivery across Dubai, Sharjah, Abu Dhabi and the entire GCC region.
