E.G.O. Washing Machine Inverter Control Board

Description

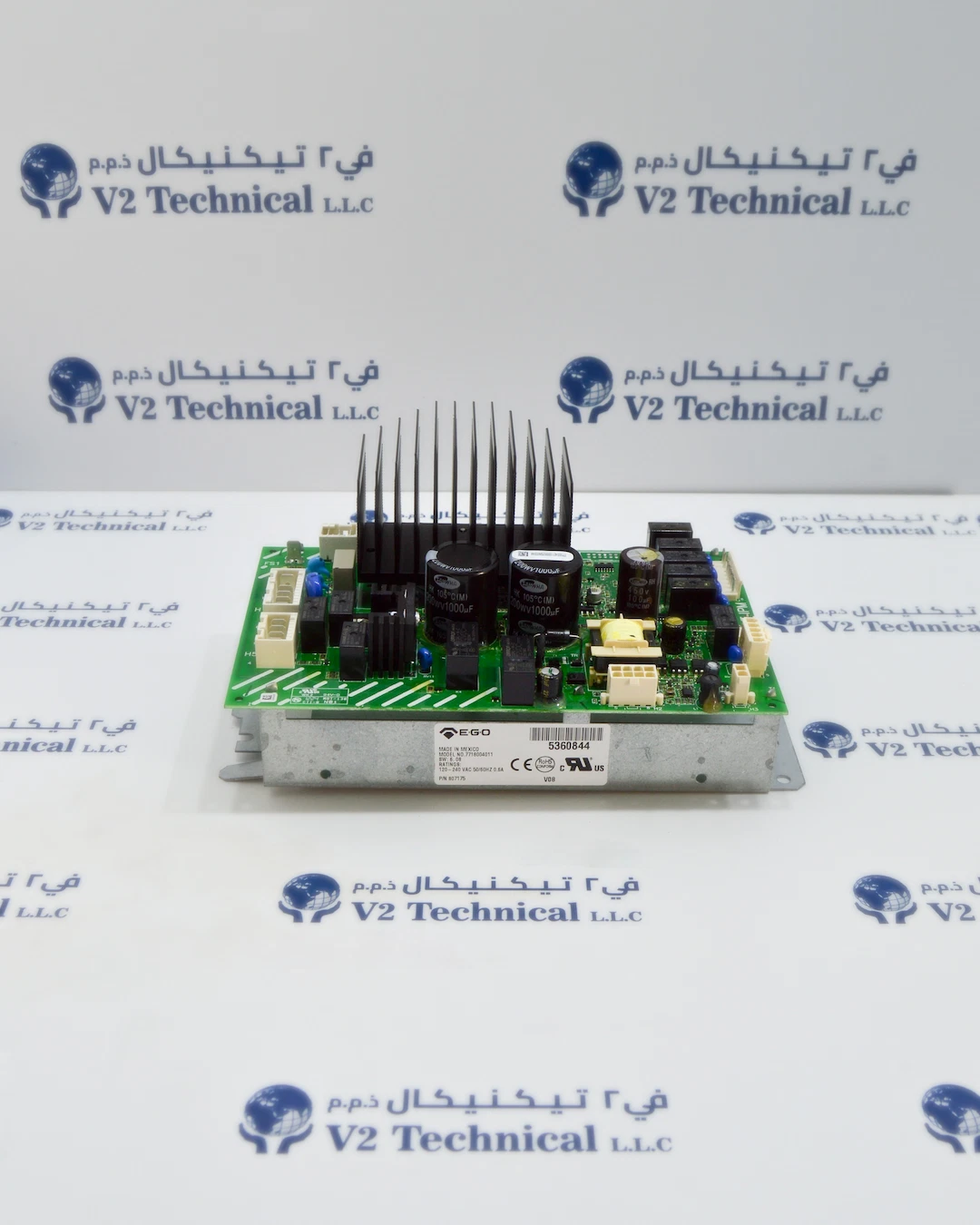

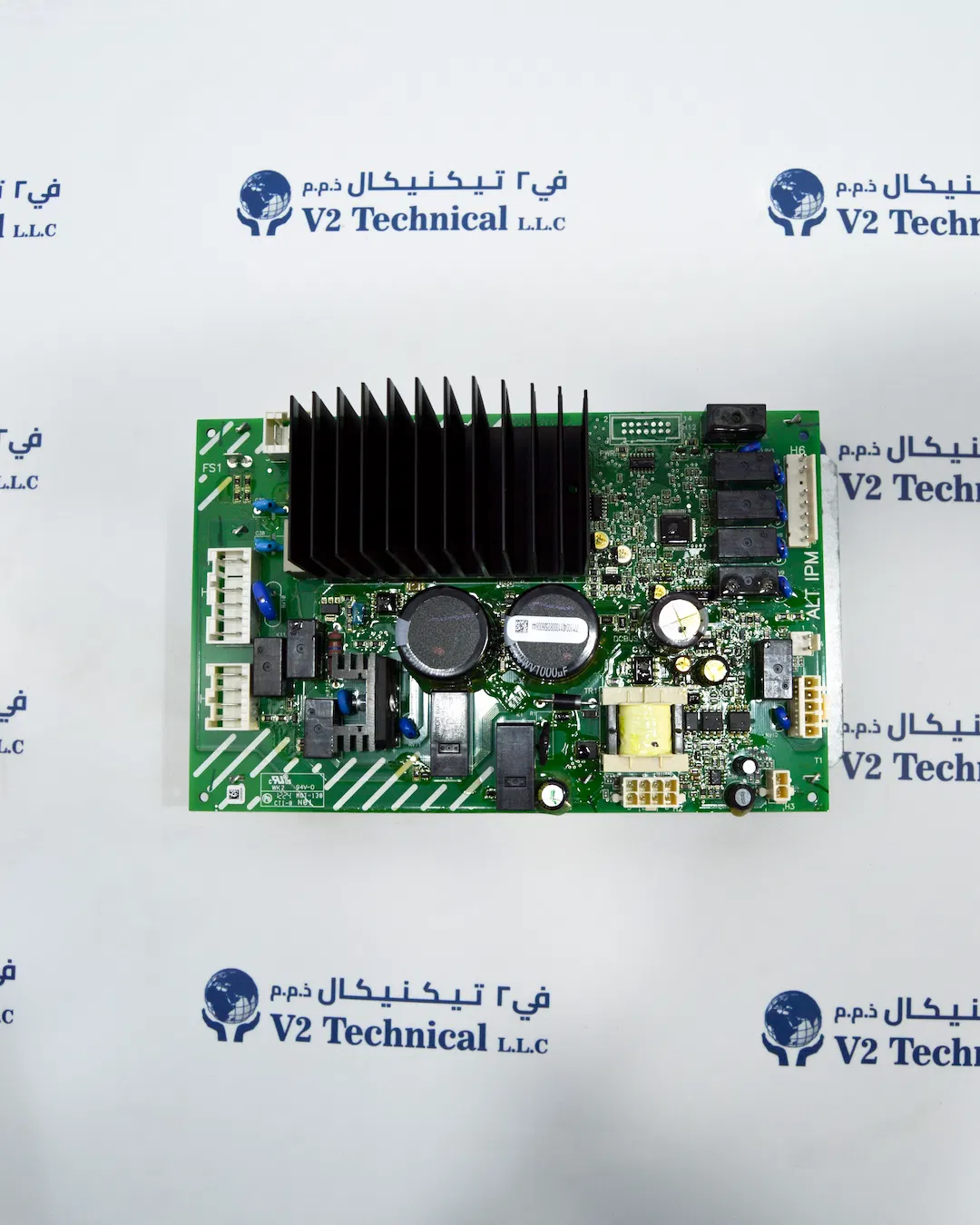

The EGO washing machine inverter control board UAE (Model 7718004011, Part Number 807175) is a genuine E.G.O. BLDC motor inverter control assembly designed for commercial and marine laundry washing machines. E.G.O. is one of the world’s leading specialists in appliance control electronics, supplying inverter boards for washing machines used in commercial laundry facilities, marine vessels, offshore platforms and hotels worldwide.

This EGO inverter control board 7718004011 drives the brushless DC (BLDC) motor of the washing machine — managing wash speed, spin speed and motor direction with high precision and energy efficiency. The board features dual 1000µF smoothing capacitors, power MOSFETs, relay array and an aluminium heatsink for reliable thermal management.

Key Specifications (from product label):
– Brand: E.G.O. (EGO Group)
– Model Number: 7718004011
– Part Number (P/N): 807175
– Serial/Batch Number: 5360844
– Version: V08
– Input Ratings: 120–240V AC, 50/60Hz, 0.6A
– Type: BLDC Motor Inverter Control PCB Assembly
– Capacitors: 2 x 1000µF / 100V electrolytic (Samsung)
– Certifications: CE, cULus (UL Listed)
– Origin: Made in Mexico

Key Features:
– Genuine E.G.O. OEM inverter control board — guaranteed compatibility and performance
– Controls BLDC motor speed, direction and torque for wash and spin cycles
– Dual 1000µF smoothing capacitors for stable DC bus voltage
– Power MOSFET array for efficient motor drive switching
– Relay array for switching motor phases
– Aluminium heat sink for thermal management during continuous operation
– Wide input voltage range 120–240V AC — universal for marine and commercial applications
– CE and UL (cULus) certified for safety compliance
– Direct replacement for failed or damaged inverter boards
– Compact PCB assembly with mounting bracket for easy installation

Applications:
– Marine vessel laundry room washing machine control
– Commercial washing machine motor inverter replacement
– Offshore platform laundry equipment repair
– Hotel and hospital commercial washer control board
– Industrial laundry machine inverter PCB repair
