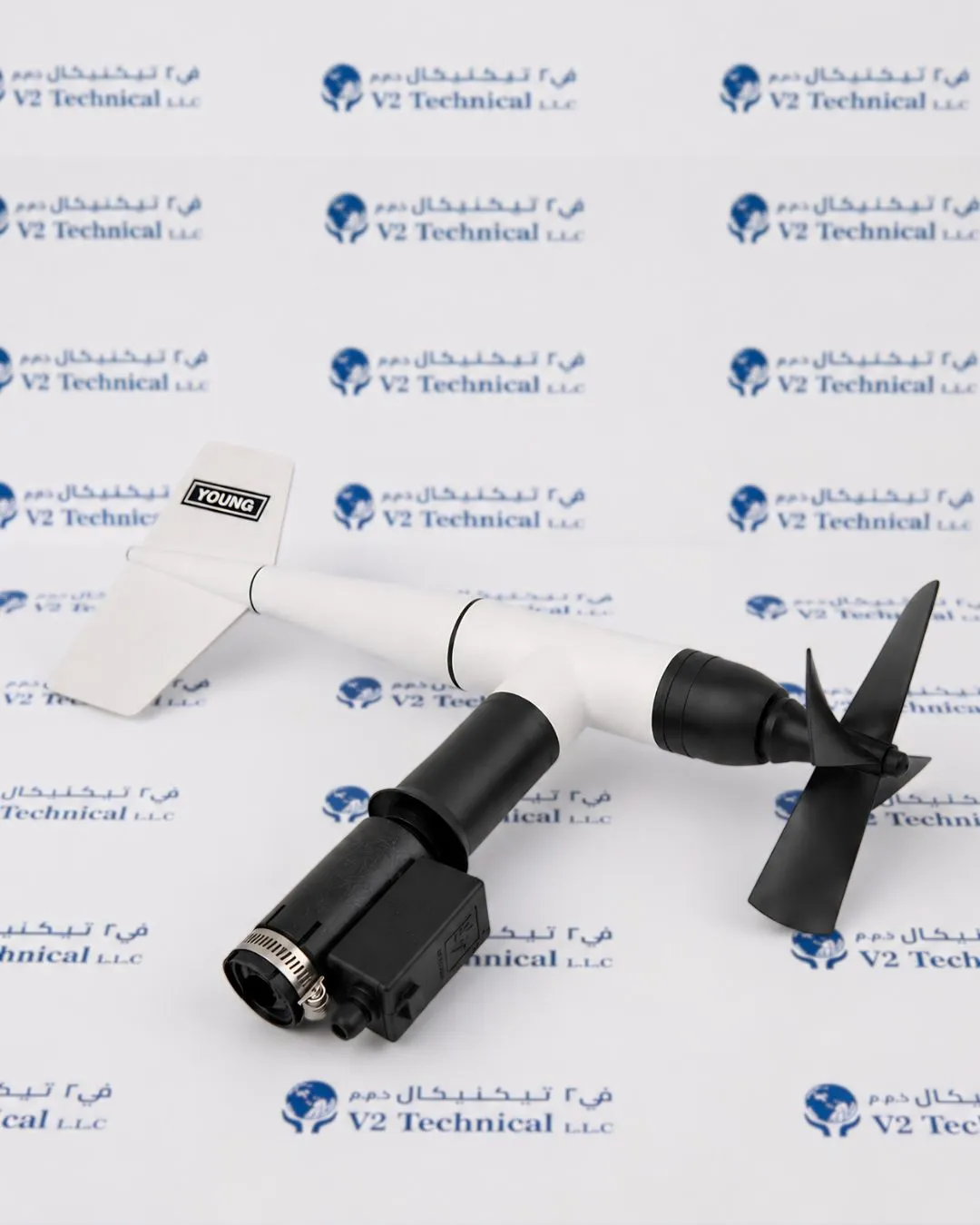

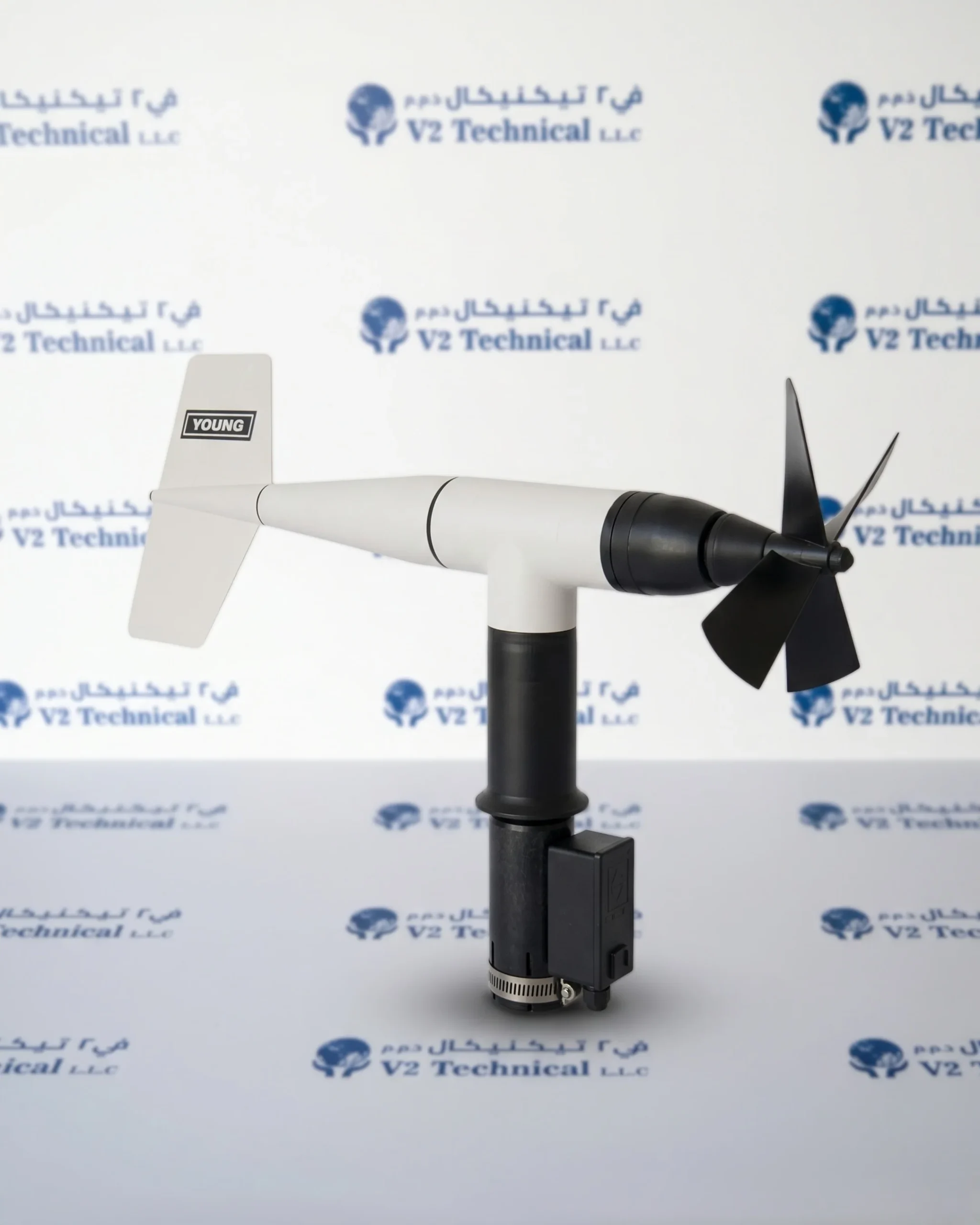

RM Young Wind Monitor – 09106 SE-MA (Marine Model)

The RM Young Model 09106 Wind Monitor-SE-MA is a high-performance marine wind sensor designed specifically for the demanding conditions of the marine environment. It combines the proven performance of the standard Wind Monitor with a unique optical encoder direction transducer, serial output, and corrosion-resistant ceramic bearings.

The wind speed sensor uses a four-blade helicoid propeller. Propeller rotation induces a variable frequency signal in a stationary coil, which is converted to a digital serial output by the onboard microprocessor. The wind direction sensor uses a durable moulded vane with an absolute encoder that retains direction orientation even when power is interrupted.

Key Specifications:
– Brand: RM Young
– Model: 09106 SE-MA (Marine Model)
– Wind Speed Range: 0–100 m/s (224 mph)
– Wind Direction Range: 0–360°
– Speed Resolution: 0.1 unit (m/s, knots, mph, km/h)
– Direction Resolution: 1 degree
– Bearings: Corrosion-resistant ceramic
– Output: Serial (RS-232/RS-422) or voltage (jumper selectable)
– Housing: UV stabilised thermoplastic
– Fittings: Stainless steel and anodised aluminium
– Mounting: Standard 1 inch pipe

Key Features:
– Optical encoder retains direction even after power interruption
– Ceramic bearings for long life in marine/corrosive environments
– Serial or voltage output — selectable via internal jumper
– Ruggedised vertical components for marine use
– UV stabilised housing for sun resistance
– Compatible with NMEA, NCAR and RMY protocols

Applications:
– Marine vessel bridge navigation systems
– Offshore platforms and rigs
– Port and harbour weather monitoring
– Ship weather routing systems
– Coastal and meteorological stations

V2 Technical LLC is a trusted marine spare parts and navigational equipment supplier based in Ajman, UAE with 20+ years of experience supplying vessels across the Middle East, West Africa and Mexico.
