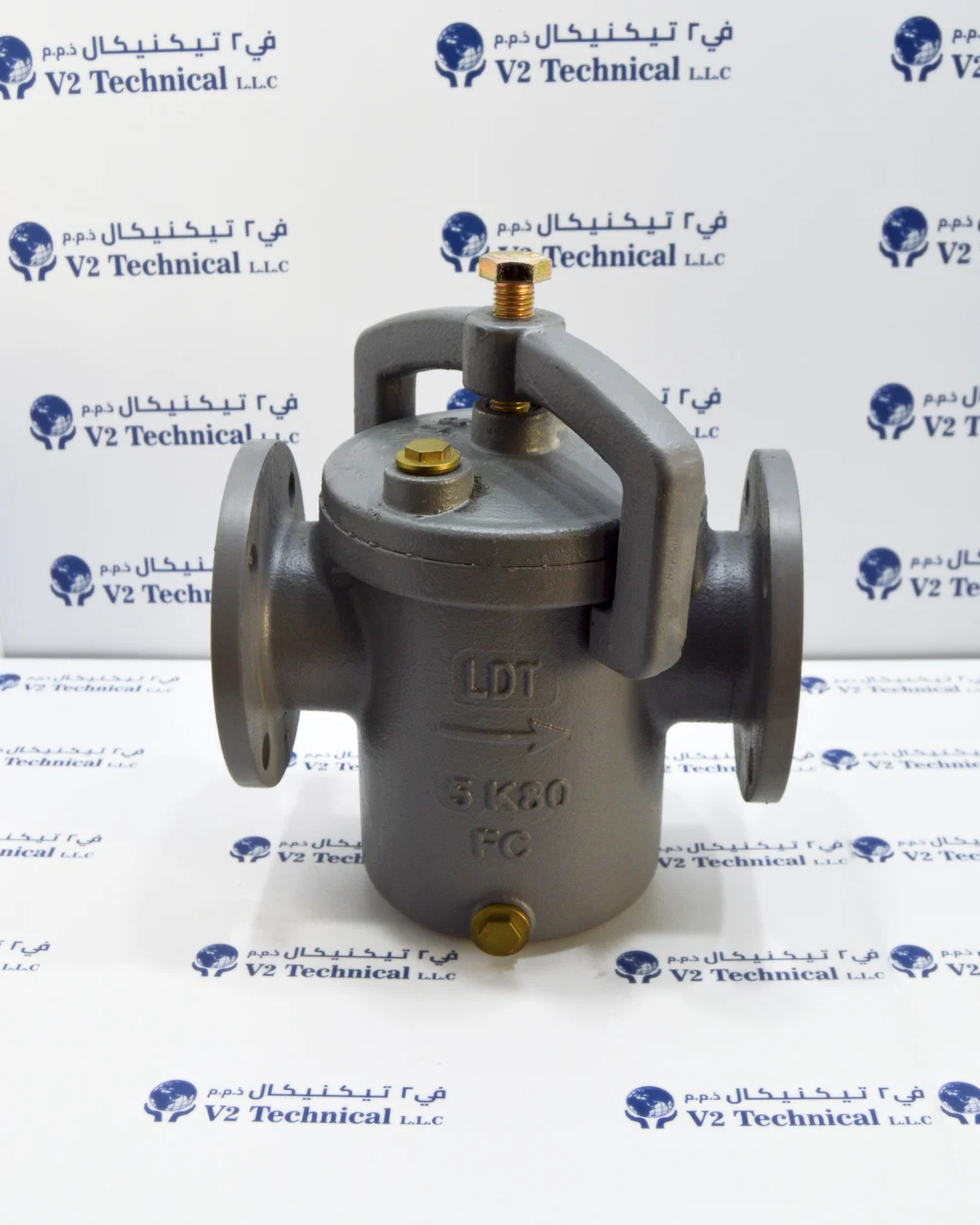

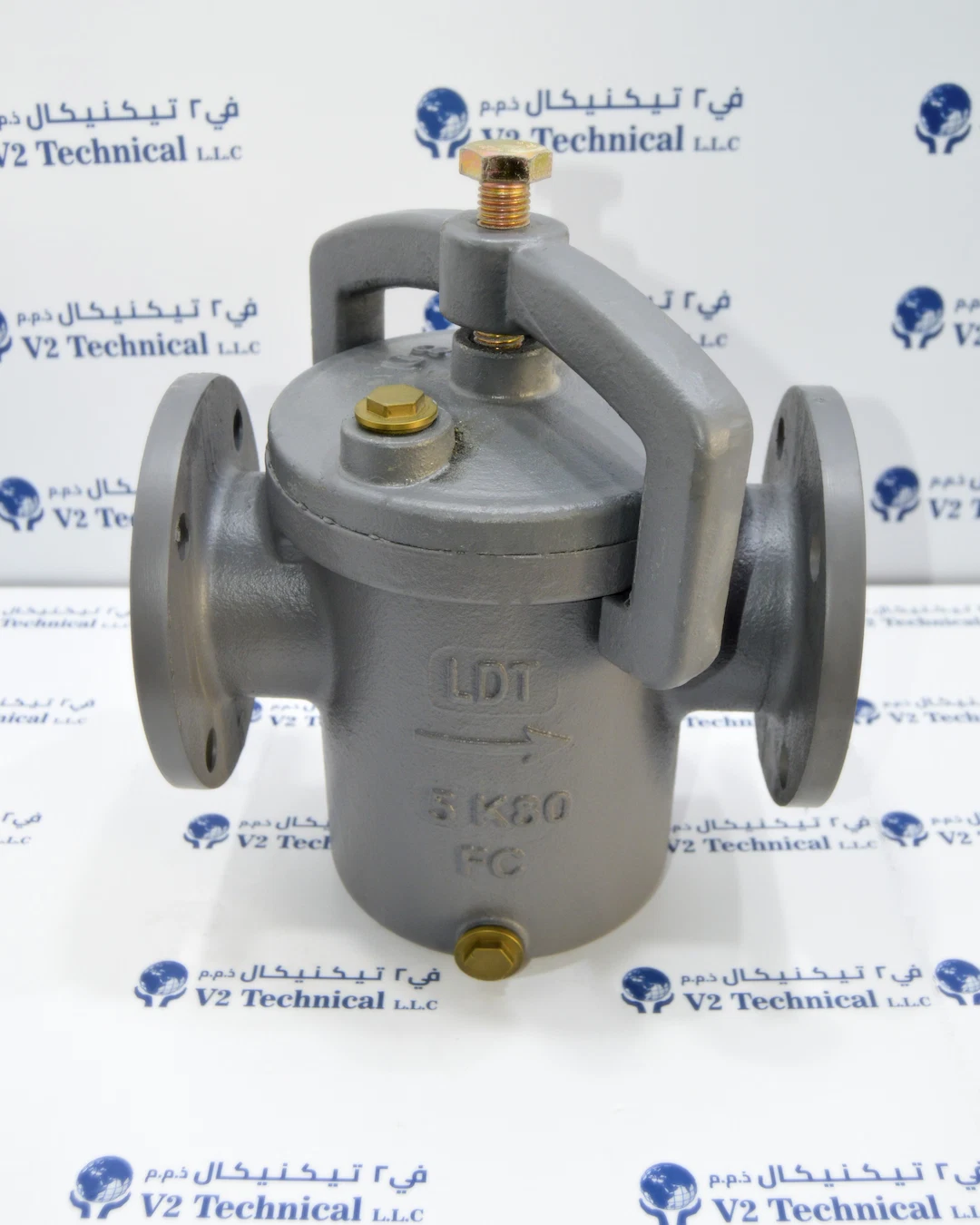

JIS F7121 Marine Cast Iron Can Water Filter

Description

The JIS F7121 marine cast iron can water Filter UAE (5K 80A, DN80) is a heavy-duty can-type water filter used on ship seawater, cooling water and freshwater lines. Looking for a JIS F7121 can water strainer near you in UAE? V2 Technical LLC  Ajman’s leading marine spare parts and piping supplier  stocks JIS marine strainers for fast delivery across Dubai, Sharjah, Abu Dhabi, Ras Al Khaimah, Fujairah and the entire UAE and Gulf region.

The JIS F7121 can water strainer, also called a marine basket strainer or sea water filter, protects pumps, heat exchangers, coolers and valves from debris, shells, scale and sediment. Water enters through the inlet flange, passes through the stainless steel strainer basket and leaves through the outlet flange. The cover is removed with a swing-bolt closure so the basket can be pulled out and cleaned without disturbing the pipework.

Searching for a JIS F7121 can water strainer price in UAE? Marine water strainer near me? Marine piping fittings supplier in Ajman or Dubai? Contact V2 Technical LLC today  the most trusted marine spare parts and piping supplier near you in UAE.

Key Specifications:
• Standard: JIS F7121 (Marine Cast Iron Can Water Strainer)
• Marking on casting: LDT, 5K 80, FC, flow direction arrow
• Size: 80A (DN80 / 3″)
• Pressure Class: JIS 5K (5 kgf/cm², approx. 0.5 MPa)
• End Connection: Flanged to JIS B2220 5K
• Flange Dimensions (5K 80A, typical): OD 180 mm, PCD 145 mm, 4 holes
• Face-to-Face (typical): 270 mm
• Overall Height (typical): approx. 340 mm
• Approx. Weight (typical): approx. 24 kg
• IMPA Code: 872006
• Media: Seawater, freshwater, cooling water

Materials (typical for JIS F7121):
• Body and Cover: Cast iron FC200
• Strainer Basket: Stainless steel (SUS304) with perforated holes
• Closure: Swing bolt with cover yoke
• Plugs: Brass (top vent plug and bottom drain plug)
• Gasket: Rubber (NBR)
• Finish: Grey marine paint coating

Key Features:
• Robust FC200 cast iron body for marine duty
• Removable stainless steel strainer basket, easy to clean
• Swing-bolt cover for fast opening without special tools
• Brass vent plug on the cover and drain plug at the bottom for venting and draining
• Straight-through type with cast flow direction arrow
• JIS 5K flanges match standard Japanese-pattern marine piping
• Large filtering area relative to the inlet to limit pressure drop
• Protects pumps, coolers, heat exchangers and valves
• Also available in other sizes from 25A to 500A, and in 10K

Where to buy a JIS F7121 can water strainer in UAE? Visit V2 Technical LLC at Shop 1, Jurf Industrial Area 2, Ajman  or order online at www.v2tkshop.com. We deliver marine piping fittings and spare parts to Dubai, Sharjah, Abu Dhabi, Fujairah, Ras Al Khaimah and all UAE emirates. Best price on marine strainers near you in UAE. Same day response guaranteed.

Applications:
• Ship seawater cooling and service water lines
• Main engine and generator cooling water systems
• Air conditioning and refrigeration condenser circuits
• Fire, ballast and general service pump suction
• Fresh water and sanitary lines
• Offshore platform water piping

Are you searching for a marine strainer supplier near you in UAE? A JIS marine valve and fittings distributor in Ajman or Dubai? V2 Technical LLC is your most trusted marine and industrial spare parts supplier in the UAE and Gulf region  serving vessel operators, offshore companies and marine engineers across the Middle East, West Africa and Mexico for over 20 years.

V2 Technical LLC  the #1 marine spare parts and piping fittings supplier in Ajman, UAE. Fast delivery across Dubai, Sharjah, Abu Dhabi and the entire GCC region.
