Description

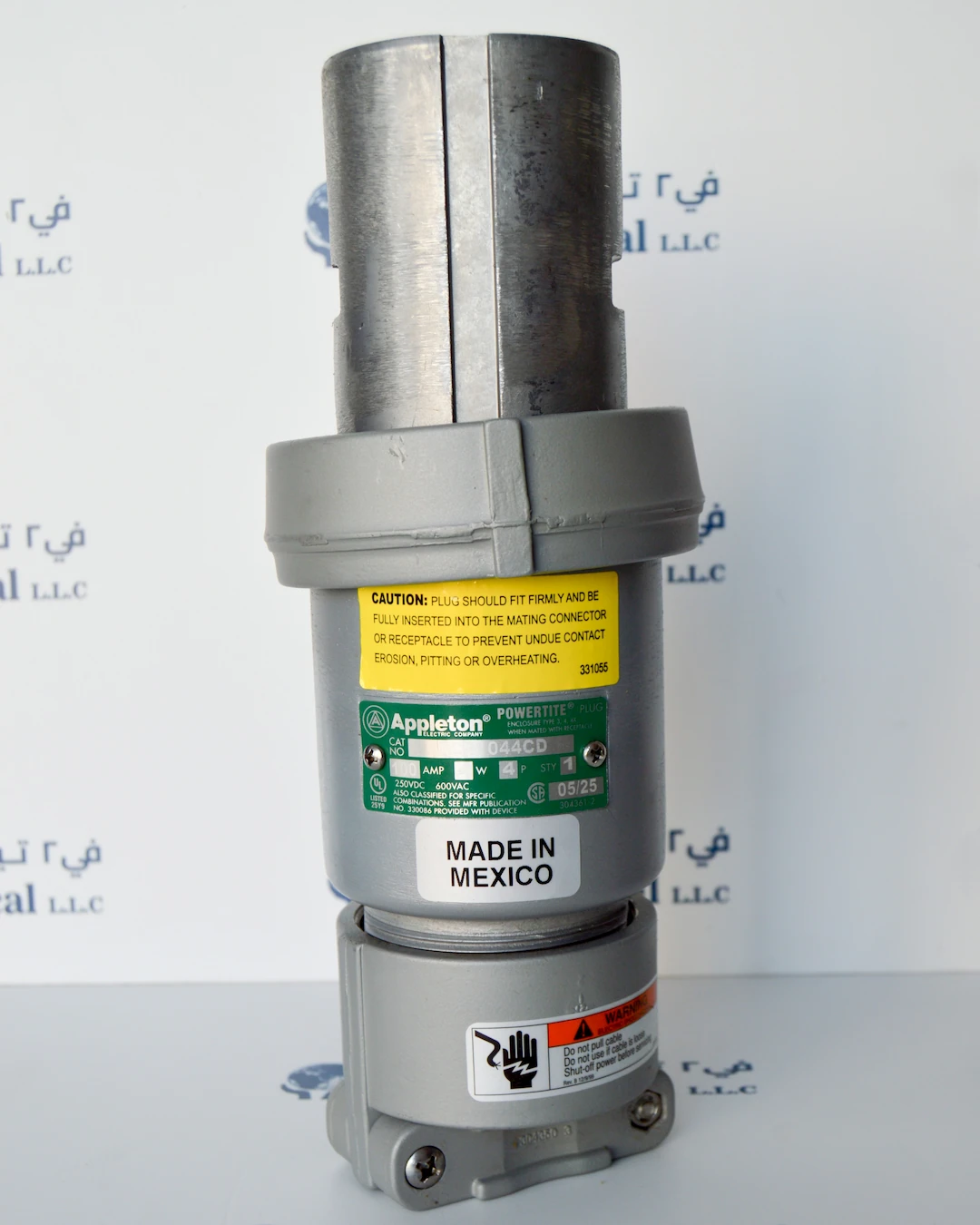

The Appleton Powertite ACP1044 is a heavy-duty Pin & Sleeve Clamping Ring Plug engineered for reliable power connections in marine, industrial and hazardous environments. Part of the trusted Powertite series, this plug is widely used in ship-to-shore power supply, dock connections and portable equipment on marine vessels worldwide.
Key Specifications:
– Brand: Appleton Electric (Powertite Series)
– Model: ACP1044 / ACP1044CD
– Type: Pin & Sleeve Clamping Ring Plug
– Current Rating: 100 Amps
– Poles: 4 Poles
– Wires: 4 Wires
– Voltage: 600V AC (3-Phase, 50–400 Hz) / 250V DC
– Cable Size: 0.875″ – 1.906″
– Wire Size: #4 to #1 AWG (Building) / #4 to #2 AWG (Extra Flex)
– Body Material: Epoxy powder coated copper-free aluminium
– Operating Temperature: -40°C to +107°C
– IP/NEMA Rating: NEMA 4X (when clamped)
– Weight: Approx. 3 kg
Key Features:
– Ideal for use on shipping docks, ports and other ship-to-shore applications
– Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
– Locking screw and slot prevents plug cable collar from backing off
– Copper-free aluminium body — corrosion resistant for marine environments
– Wide operating temperature range: -40°C to +107°C
– Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps and compressors
– Positive polarization for correct connection every time
– Easy cable entry with clamping ring design
Applications:
– Marine ship-to-shore power connections
– Port and dock power supply systems
– Marine vessel generator and welding power
– Pump and compressor power supply
– Offshore platform portable power connections
– Industrial heavy-duty power distribution
V2 Technical LLC is a trusted marine spare parts and electrical equipment supplier based in Ajman, UAE with 20+ years of experience supplying vessels across the Middle East, West Africa and Mexico.
