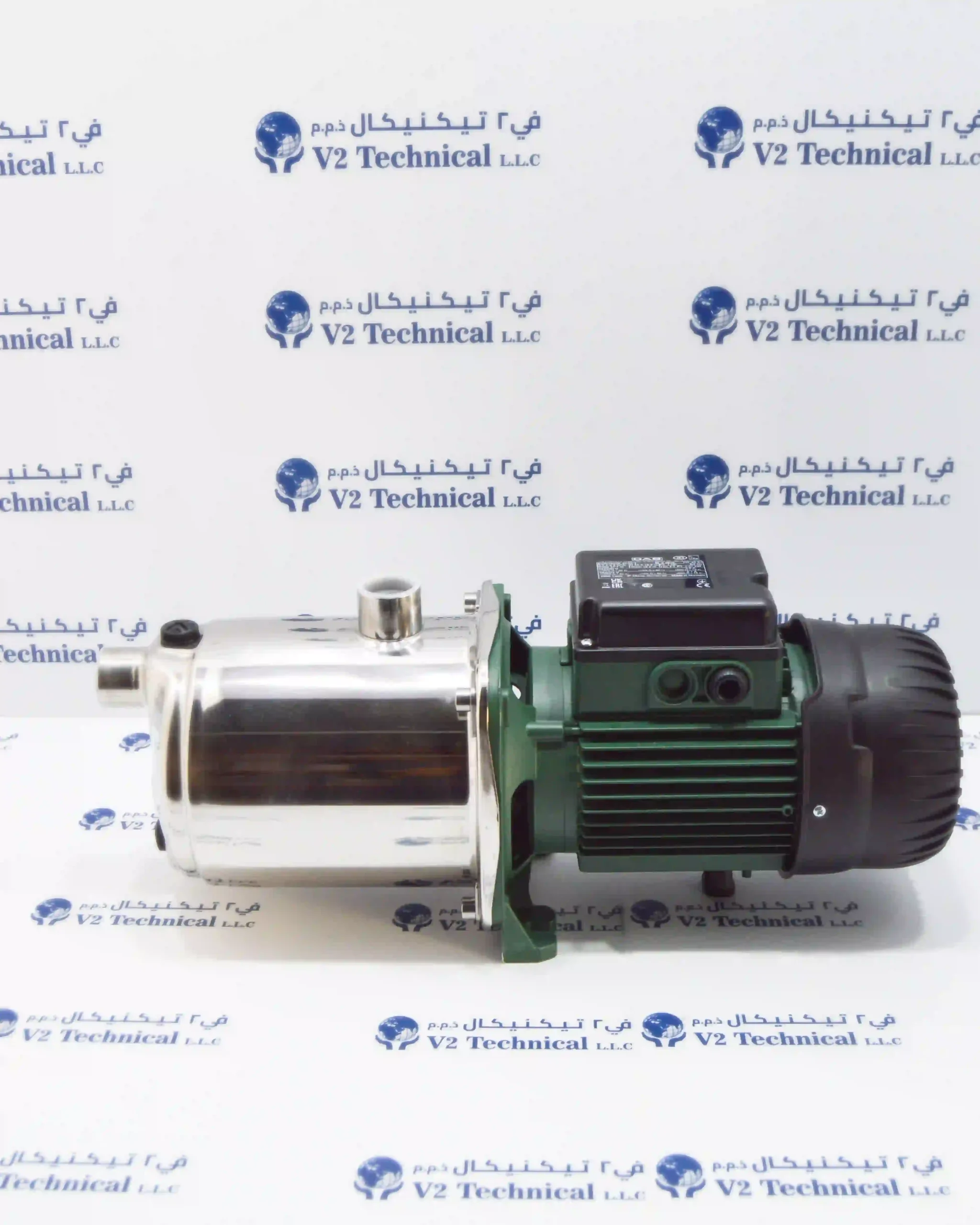

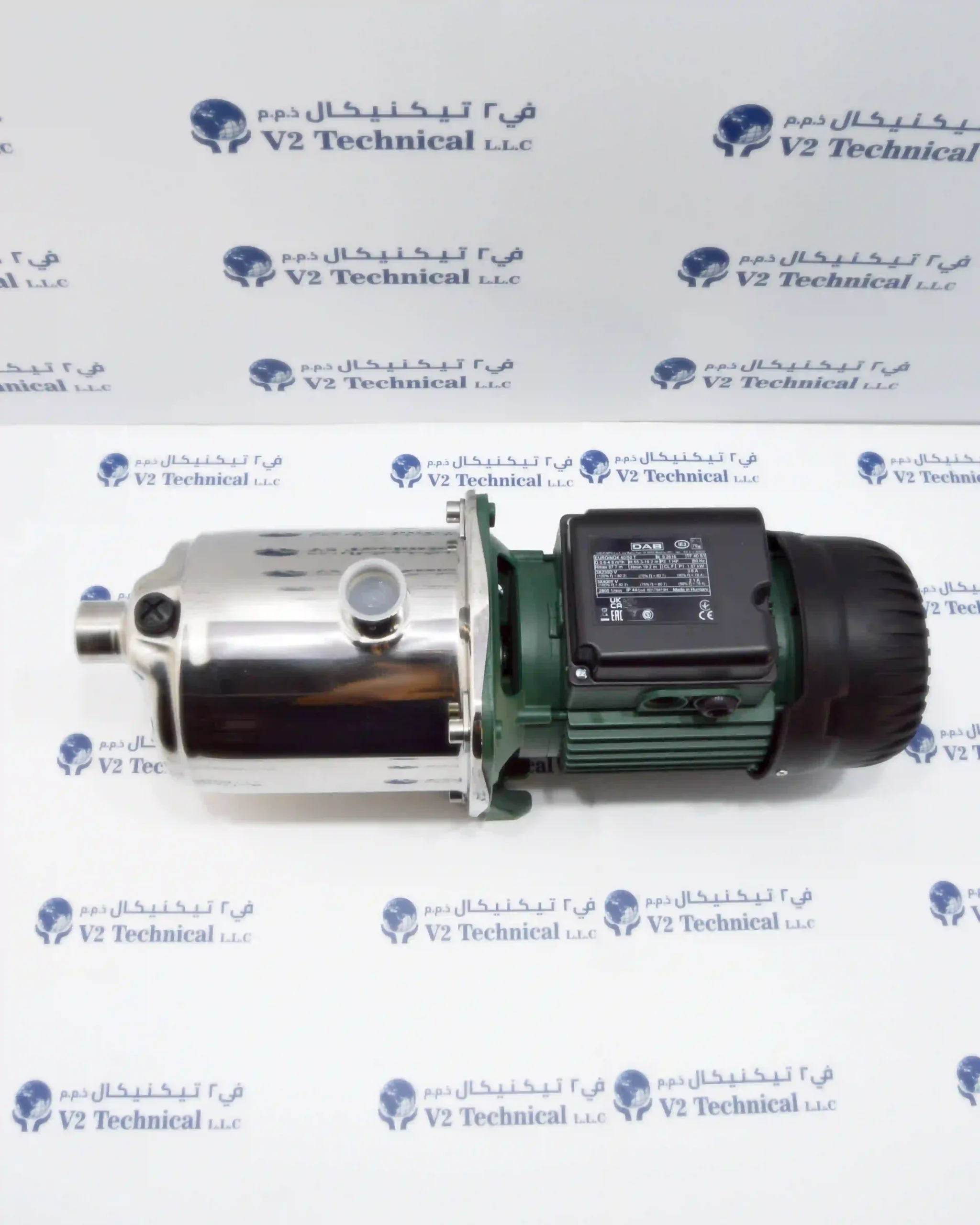

DAB EUROINOX 40/50 T – Horizontal Multistage Centrifugal Pump

Description

The DAB EUROINOX 40/50 T is a three-phase horizontal multistage centrifugal pump with a full stainless steel pump body — made in Italy by DAB Pumps, one of Europe’s leading pump manufacturers with over 40 years of expertise.

The DAB EUROINOX range are horizontal multistage pumps suited to domestic water supply pressure boosting, irrigation of gardens, washdown and sprinkler systems — a very versatile pump available with multiple impellers depending on the pressure output required.

Key Specifications:
– Brand: DAB Pumps (Italy)
– Model: EUROINOX 40/50 T
– Type: Three-phase horizontal multistage centrifugal pump
– Power: 0.75 kW (1.0 HP)
– Voltage: 3-Phase 380–415V, 50Hz
– Max Flow Rate: 80 L/min (4.8 m³/h)
– Max Head: 58 m
– Port Size: 1″ BSP
– Motor Protection: IP44 (terminal box IP55)
– Motor Efficiency: IE2/IE3 class
– Origin: Made in Italy

Construction Materials:
– Stainless steel pump body
– Motor support in die-cast aluminium, seal holder in AISI 304 steel
– Mechanical seal in carbon/ceramic
– Rotor shaft in AISI 304 steel
– Rotors, diffuser bodies and diffusers in technopolymer

Key Features:
– Excellent suction capacity even in the presence of air bubbles
– Extremely quiet operation — ideal for noise-sensitive marine environments
– Full stainless steel pump body — corrosion resistant for marine use
– Three-phase motor — suitable for industrial and commercial marine applications
– Compact horizontal design — easy installation in engine rooms and machinery spaces
– High efficiency IE2/IE3 motor for energy savings
– Made in Italy — premium European quality

Applications:
– Marine vessel freshwater supply and pressurisation
– Ship washdown and deck cleaning systems
– Onboard firefighting water supply boost
– Irrigation and water transfer aboard vessels
– Marine HVAC chilled water circulation
– Offshore platform water supply systems
– Industrial water pressure boosting
