Description

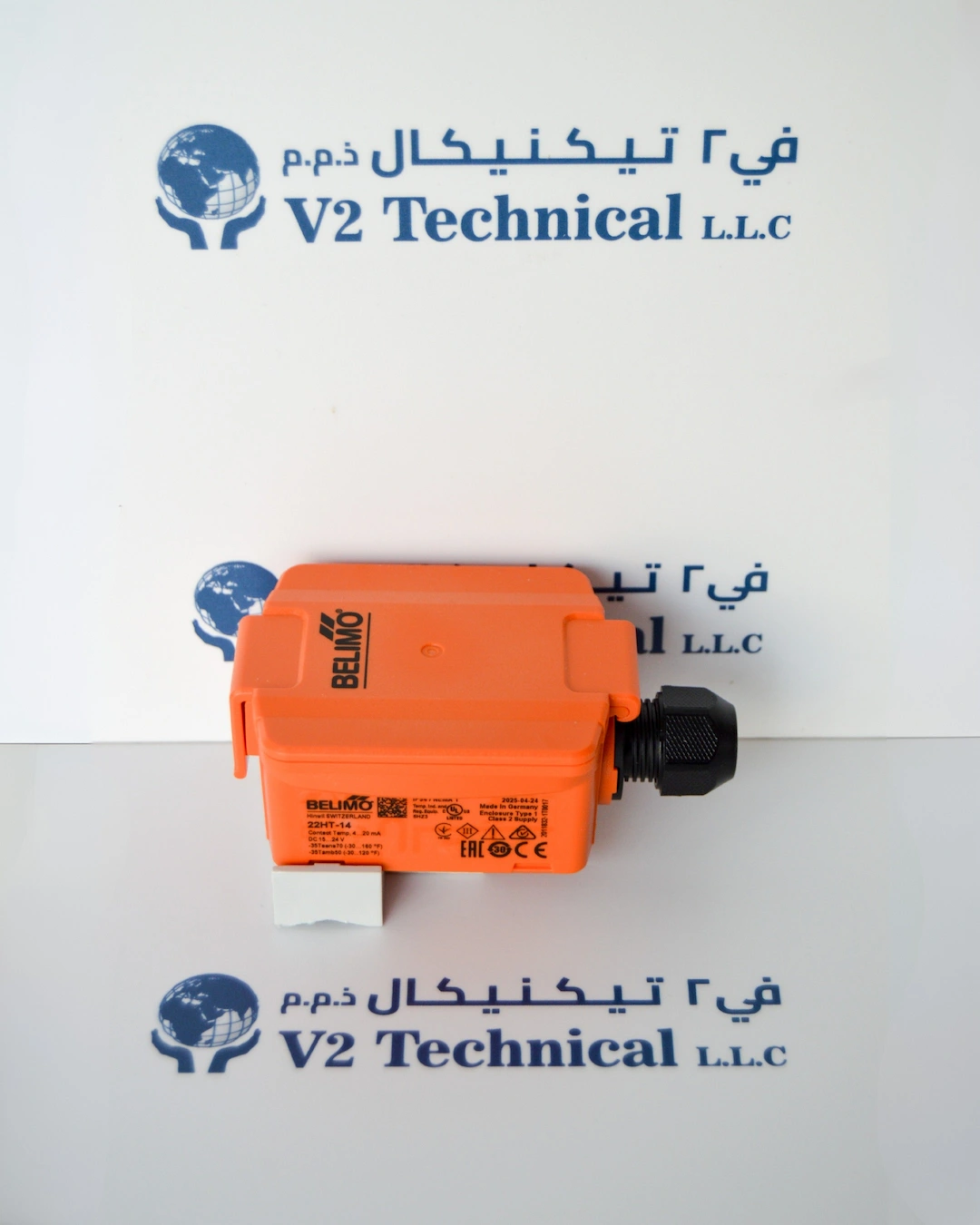

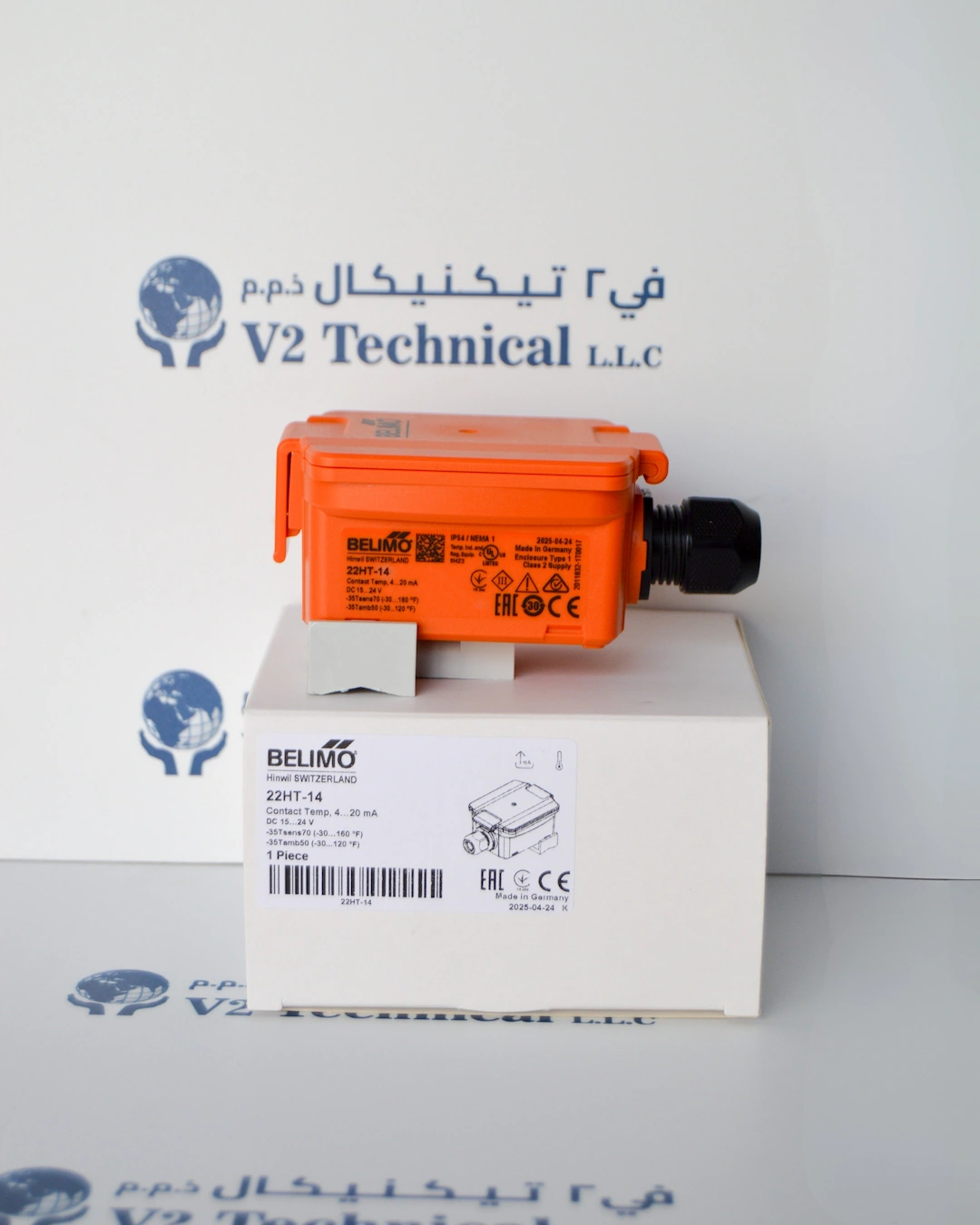

The Belimo 22HT-14 contact temperature sensor UAE is a premium active surface contact pipe temperature sensor from Belimo — the global market leader in HVAC field devices including actuators, control valves and sensors. This Belimo 22HT-14 sensor is designed to measure the surface temperature of pipes and curved surfaces in HVAC, marine and building automation applications, delivering a precise 4–20mA output signal directly proportional to the measured temperature.
The Belimo 22HT-14 pipe sensor features a spring-loaded brass contact pin that ensures fast response and accurate readings by maintaining firm contact with the pipe surface at all times. The sintered moisture protection coating on the sensing element provides excellent resistance to condensation, mechanical stress and vibrations — making it an ideal sensor for marine HVAC and offshore environments.
Key Specifications (from product label and datasheet):
– Brand: Belimo
– Model: 22HT-14
– Type: Active Contact Temperature Sensor (Pipe/Surface)
– Sensor Element: PT1000
– Output Signal: 4–20mA (1x, max. load 500Ω)
– Supply Voltage: DC 15–24V
– Sensing Temperature Range: -30°C to +160°C (-22°F to +320°F)
– Ambient Temperature Range: -30°C to +50°C (-22°F to +120°F)
– Protection Rating: IP54 / NEMA 1
– Pipe Diameter: ø20–110mm (0.8–4.3 in.) with included fixing strap
– Electrical Connection: Screw terminals
– Housing: Orange ABS plastic with cable gland
– Included: Fixing strap for pipes ø20–110mm
– Made In: Germany
– Manufacturing Date: 2025-04-24
– Certifications: CE, EAC, cULus
Key Features:
– Spring-loaded brass contact pin — maintains firm pipe surface contact for fast accurate response
– Active 4–20mA output — suitable for long cable runs and direct PLC/BMS integration
– Sintered moisture protection on sensing element — resistant to condensation and vibration
– Wide sensing range -30°C to +160°C covers chilled water, hot water and steam systems
– IP54 rated orange housing — suitable for challenging marine and HVAC environments
– Compact and easy to install — fixing strap included, no special tools required
– Made in Germany to Belimo’s highest quality standards
– Compatible with all standard building automation and control systems
Applications:
– Marine vessel HVAC chilled and hot water pipe temperature monitoring
– Ship cooling water temperature sensing
– Engine room heat exchanger temperature monitoring
– Building and ship automation temperature control loops
– HVAC energy metering and heat/cooling calculation
– Industrial process pipe temperature monitoring
For full technical specifications and documentation, visit the official Belimo website at www.belimo.com
V2 Technical LLC is a trusted marine spare parts and HVAC components supplier based in Ajman, UAE with 20+ years of experience supplying vessels across the Middle East, West Africa and Mexico.
