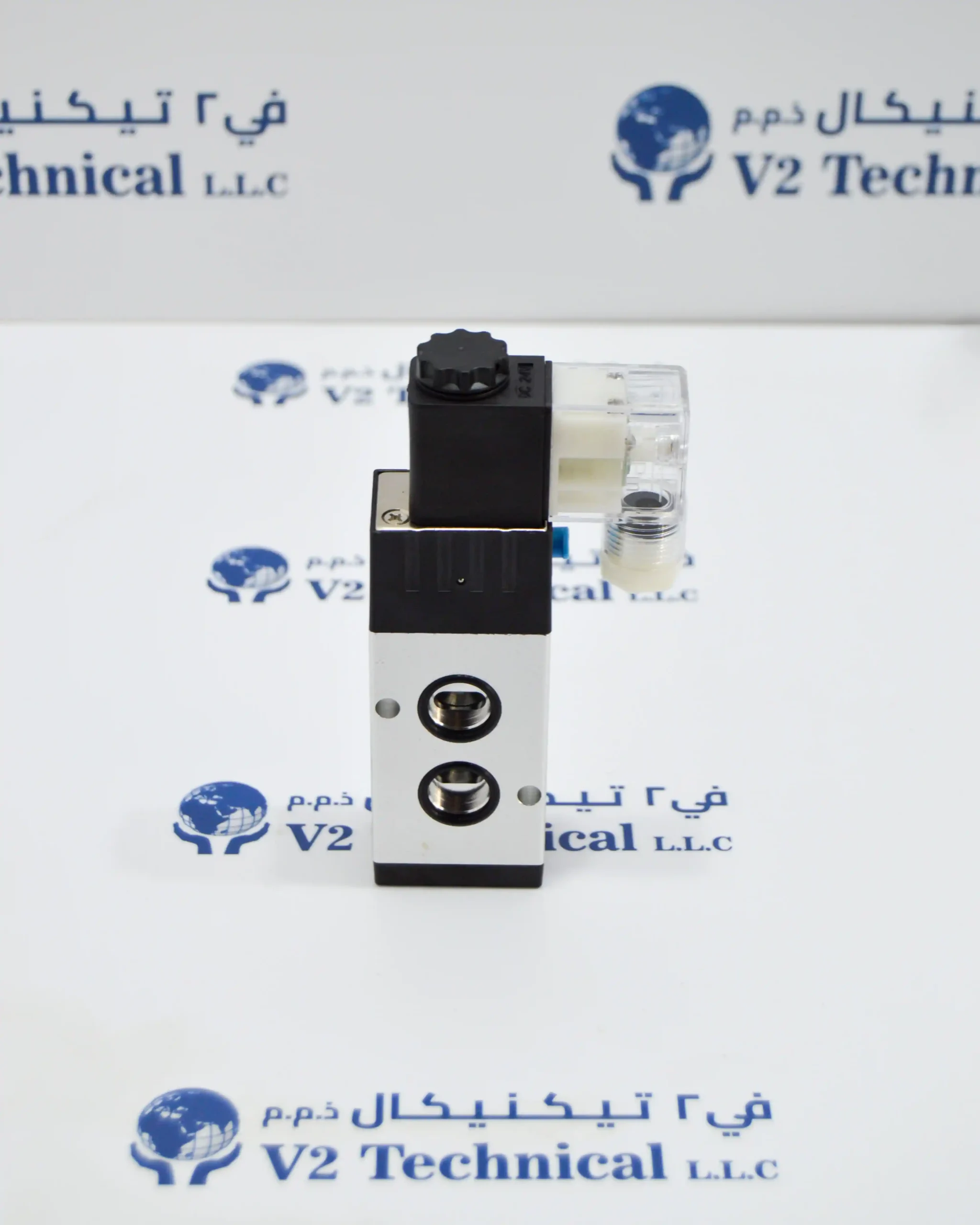

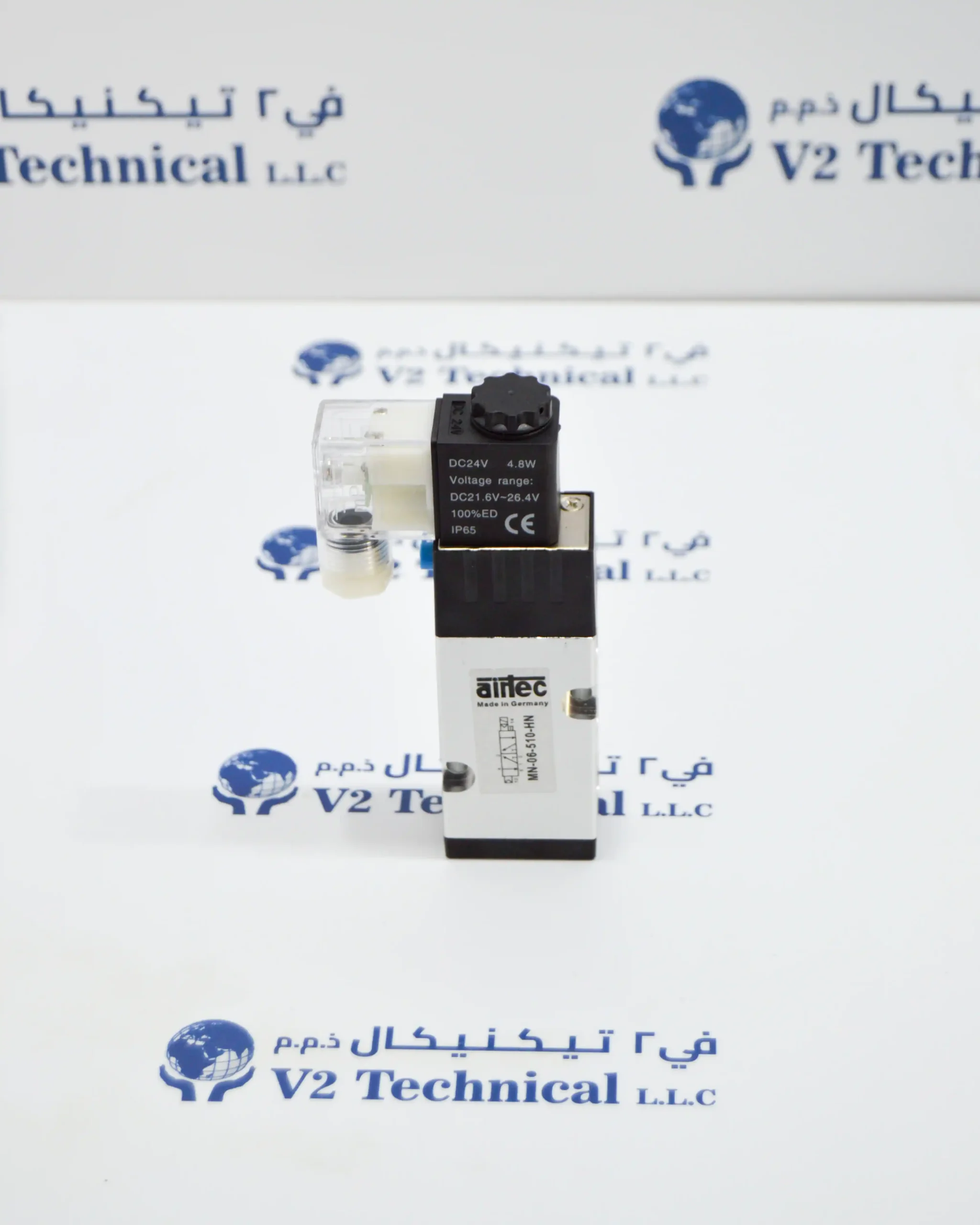

Air Tech Pneumatic Solenoid Valve – MN 06 510-HN

Description

The Airtec MN-06-510-HN is a compact electrically operated pneumatic solenoid valve designed for FiFi (Fire Fighting) suction systems aboard marine vessels and offshore platforms.

Built to Airtec’s high German engineering standards, this valve provides reliable air spring return operation for controlling pneumatic actuators in firefighting suction line systems — critical for vessel safety and emergency response readiness.

Key Specifications:
– Brand: Airtec
– Model: MN-06-510-HN
– Coil Model: 23-SP-011-412
– Voltage: 24V DC
– Current: 175 mA
– Power: 4.2W
– Operating Pressure: 1–10 bar
– Fluid: Air
– Port Size: G1/4
– Nominal Size: 6mm
– Actuation: Electrically operated, Air Spring Return
– Protection: IP65
– Ambient Temperature: -10°C to +70°C
– Body Material: Aluminium (anodised), plastic
– Weight: Approx. 300g
– Origin: Made in Germany

Key Features:
– Compact MN-06 series solenoid valve
– Air spring return for fail-safe operation
– IP65 protection — suitable for harsh marine environments
– Wide ambient temperature range (-10°C to +70°C)
– Anodised aluminium body for corrosion resistance
– Low power consumption (4.2W)
– Reliable German-engineered construction
– Direct replacement for Airtec OEM valves

Applications:
– Marine FiFi (Fire Fighting) suction systems
– Fire pump remote control systems
– Pneumatic actuator control on vessels
– Offshore platform firefighting systems
– Emergency shutdown and safety systems
– Marine pump control valve panels
