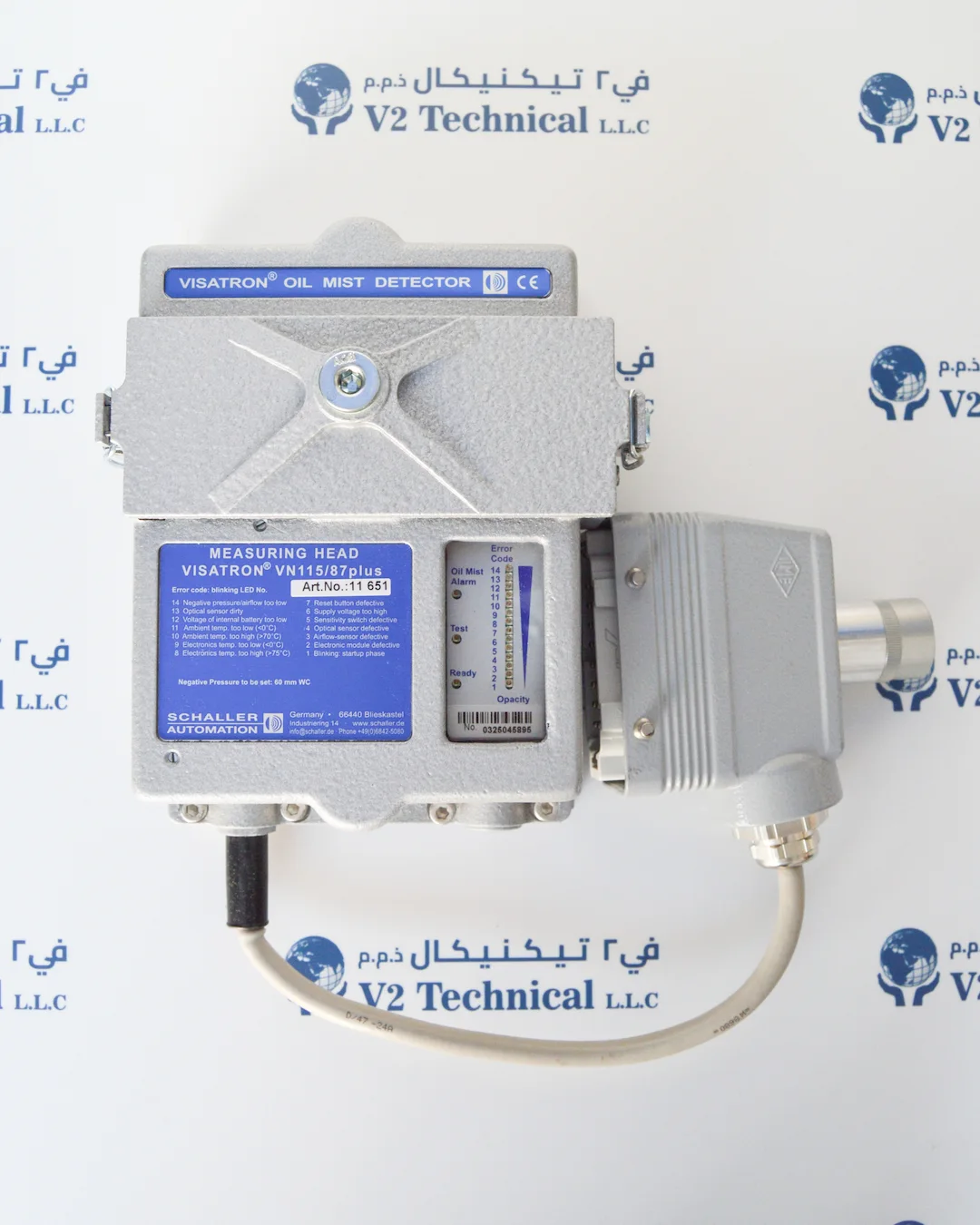

Schaller Visatron VN115/87plus Oil Mist Detector

Description

The Schaller Visatron VN115/87plus oil mist detector UAE (Art.No. 11651) is a world-renowned marine diesel engine safety system from Schaller Automation Germany — protecting over 54,000 engines worldwide against catastrophic oil mist explosions in the crankcase.

This Schaller Visatron VN115/87plus oil mist detector continuously monitors the atmosphere inside marine diesel engine crankcases using infrared opacity measurement. When oil mist concentration exceeds the set alarm threshold — indicating dangerously hot or failing bearing surfaces — the system immediately triggers an alarm to the ship’s safety system, initiating engine slowdown or automatic shutdown to prevent explosion, fire and catastrophic engine damage.

Key Specifications (from product label and datasheet):
– Brand: Schaller Automation (Germany)
– Product: Visatron® Oil Mist Detector
– Model: VN115/87plus
– Article Number: 11 651
– Serial Number: 0325045895
– Type: Measuring Head with Pipe Connector Box
– Detection Method: Infrared opacity measurement
– Sampling System: Header-suction-tube system
– Negative Pressure Setting: 60mm WC
– Alarm Levels: Pre-alarm (70% of main alarm) + Main alarm
– Error Code Display: LED blinking code system (14 diagnostic codes)
– Standards: IACS UR M10 compliant
– Classification Approvals: 11 classification societies
– Certifications: CE, Machinery Directive 2006/42/EG, EMC directive
– Origin: Made in Germany

Key Features:
– Protects marine diesel engines against oil mist explosion — saves lives and engines
– Header-suction-tube system samples all engine crankcase compartments in parallel for rapid detection
– Infrared opacity measurement — fast, reliable and immune to dirt compared to older methods
– Pre-alarm at 70% of main alarm level — provides early warning before critical threshold is reached
– Scavenging air chambers supplied with fresh pressurised air — maximally protects optical system from dirt contamination
– 14 diagnostic error codes via LED blinking system — easy fault identification
– Measuring head interchangeable with former VN/87 series — protects existing installations
– Built to last the entire engine lifetime — not a disposable system
– Approved by 11 classification societies including Lloyd’s Register, Bureau Veritas, DNV, ABS and more
– Designed to withstand vibrations beyond classification rules
– Part of the DIEMOS® integrated safety system

Error Code Functions (visible on label):
– Pre-alarm, alarm and test functions with LED opacity display
– Error monitoring for negative pressure, optical sensor, supply voltage, sensitivity switch, airflow sensor, electronic module, ambient temperature and battery

Applications:
– Marine vessel main diesel engine crankcase monitoring
– 2-stroke and 4-stroke marine diesel engine protection
– Generator engine oil mist detection
– Offshore platform engine safety systems
– Ship propulsion engine protection

For full technical specifications and documentation, visit the official Schaller Automation website at www.schaller-automation.com
