Description
The DN250 wafer-type butterfly valve UAE is a 10-inch (250 mm) gear-operated butterfly valve for large-bore marine and industrial piping. Looking for a DN250 butterfly valve near you in UAE? V2 Technical LLC, Ajman’s leading marine spare parts and valve supplier stocks wafer butterfly valves for fast delivery across Dubai, Sharjah, Abu Dhabi, Ras Al Khaimah, Fujairah and the entire UAE and Gulf region.

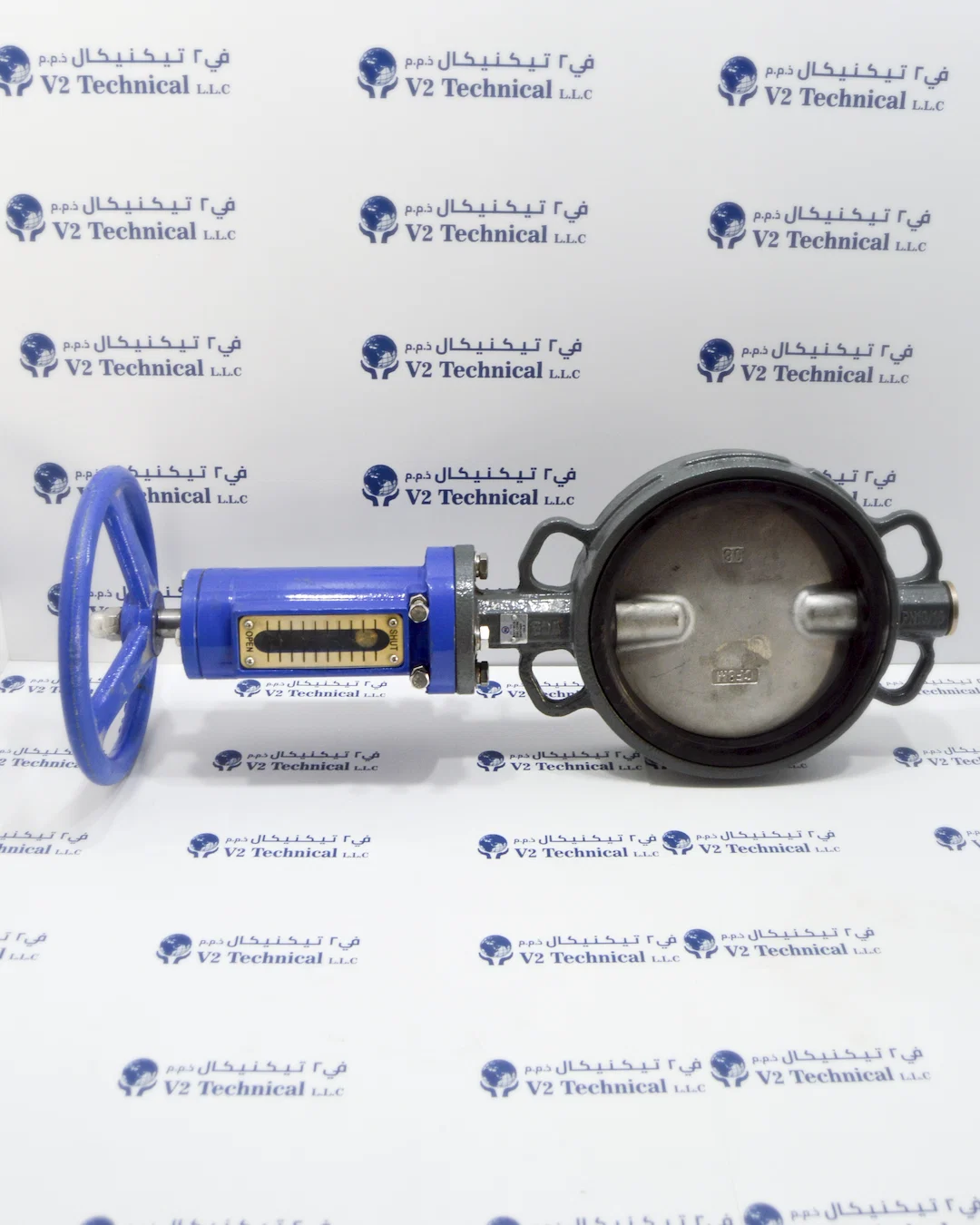

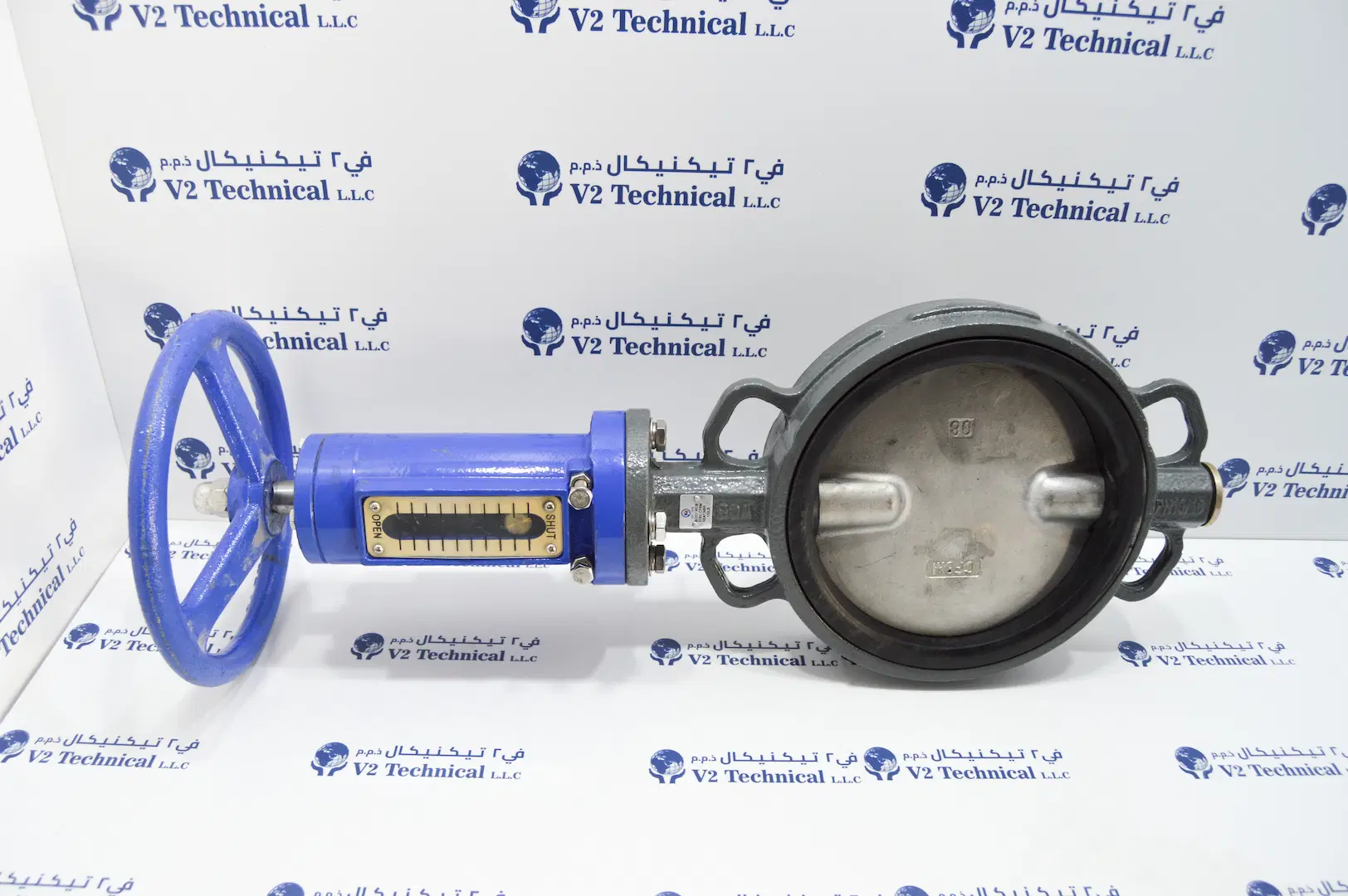

This DN250 wafer butterfly valve has a cast iron body, a CF8M (cast 316) stainless steel disc and a resilient rubber seat. Because it is wafer-type it fits between two pipe flanges with a short face-to-face length, which saves weight and space compared with a gate or globe valve of the same size. The valve is operated by a worm-gear gearbox with a blue handwheel, which makes a 250 mm valve easy to turn by hand. A built-in OPEN / SHUT position indicator shows the disc position at a glance, even in dimly lit engine rooms.
Searching for a DN250 butterfly valve price in UAE? Gear-operated butterfly valve near me? Marine valve supplier in Ajman or Dubai? Contact V2 Technical LLC today, the most trusted marine spare parts and valve supplier near you in UAE.
Key Specifications (visible on unit and typical for this valve type):
• Type: Concentric wafer butterfly valve
• Size: DN250 (10″)
• Operation: Worm-gear gearbox with handwheel
• Position Indicator: OPEN / SHUT scale
• Disc Material: CF8M (cast 316 stainless steel)
• Seat: Resilient rubber (EPDM or NBR confirm on nameplate)
• Body: Cast iron, painted (grey body, blue gearbox and handwheel)
• Connection: Wafer, with centering ears for flange alignment
• Flange Compatibility: PN10 / PN16 / ANSI 150 (multi-drilling confirm on nameplate)
• Face-to-Face (typical DN250): approx. 68 mm (EN 558 series 20)
• Pressure Rating (typical): PN16 (16 bar) confirm on nameplate
• Design Standard (typical): EN 593 / API 609
Key Features:
• CF8M stainless steel disc good resistance to seawater, pitting and corrosion
• Resilient seat gives tight shut-off and acts as the flange gasket
• Gear operator makes a large valve easy to open and close, with controlled opening for throttling
• OPEN / SHUT position indicator for quick visual checking
• Short wafer body saves space and weight in engine rooms and pump rooms
• Quarter-turn operation fast, with low operating torque
• Replaceable rubber seat extends valve life
• Suitable for isolating and throttling service
Where to buy a DN250 butterfly valve in UAE? Visit V2 Technical LLC at Shop 1, Jurf Industrial Area 2, Ajman or order online at www.v2tkshop.com. We deliver marine valves and spare parts to Dubai, Sharjah, Abu Dhabi, Fujairah, Ras Al Khaimah and all UAE emirates. Best price on butterfly valves near you in UAE. Same day response guaranteed.
Applications:
• Seawater cooling and service water systems
• Ballast and bilge piping
• Fire main and general service lines
• Freshwater and condensate lines
• HVAC and chilled water systems
• Offshore platform and port water piping
• Industrial water treatment and process lines
Are you searching for a butterfly valve supplier near you in UAE? A marine valve distributor in Ajman or Dubai? V2 Technical LLC is your most trusted marine and industrial spare parts supplier in the UAE and Gulf region serving vessel operators, offshore companies and marine engineers across the Middle East, West Africa and Mexico for over 20 years.
V2 Technical LLC the #1 marine spare parts and valve supplier in Ajman, UAE. Fast delivery across Dubai, Sharjah, Abu Dhabi and the entire GCC region.
