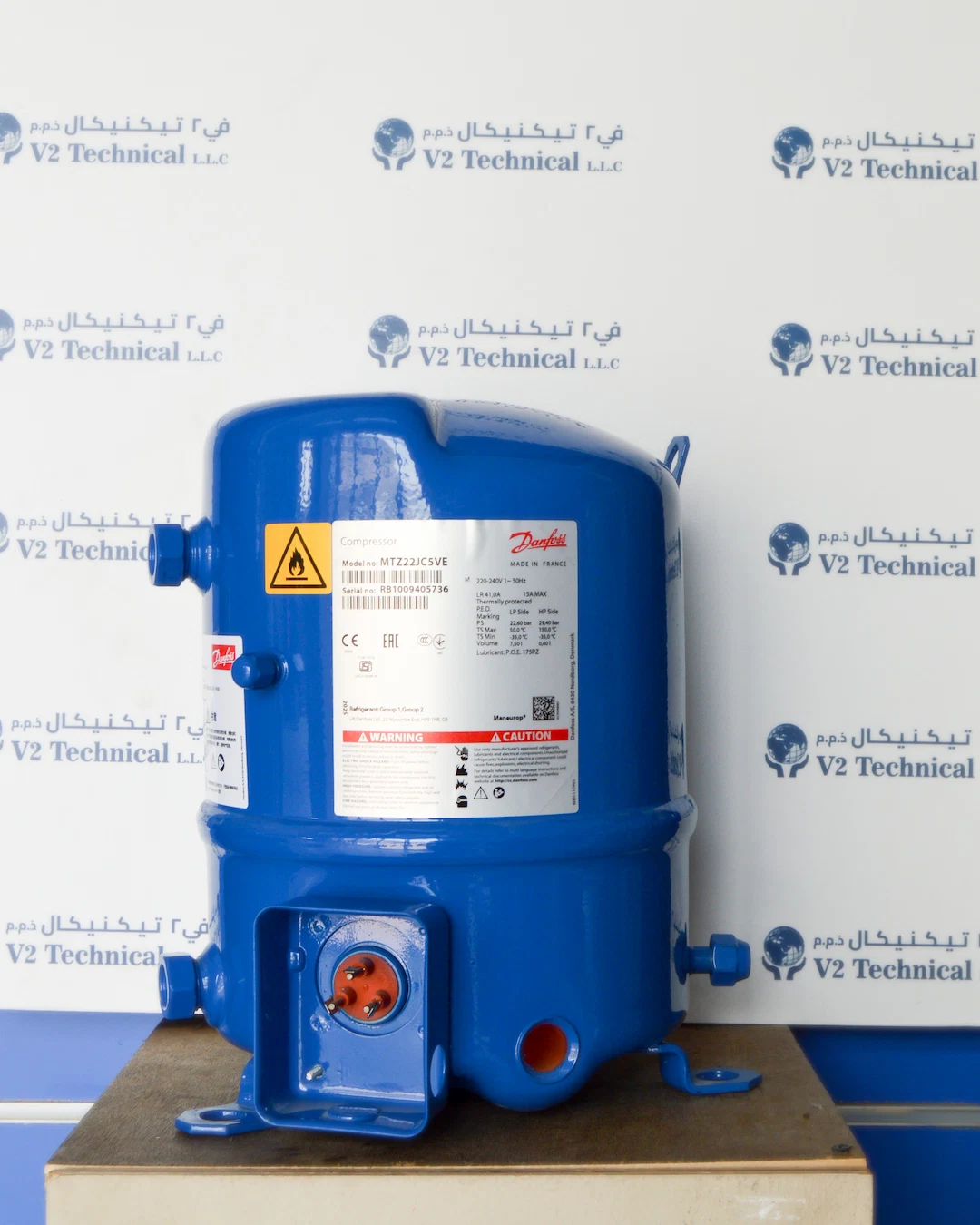

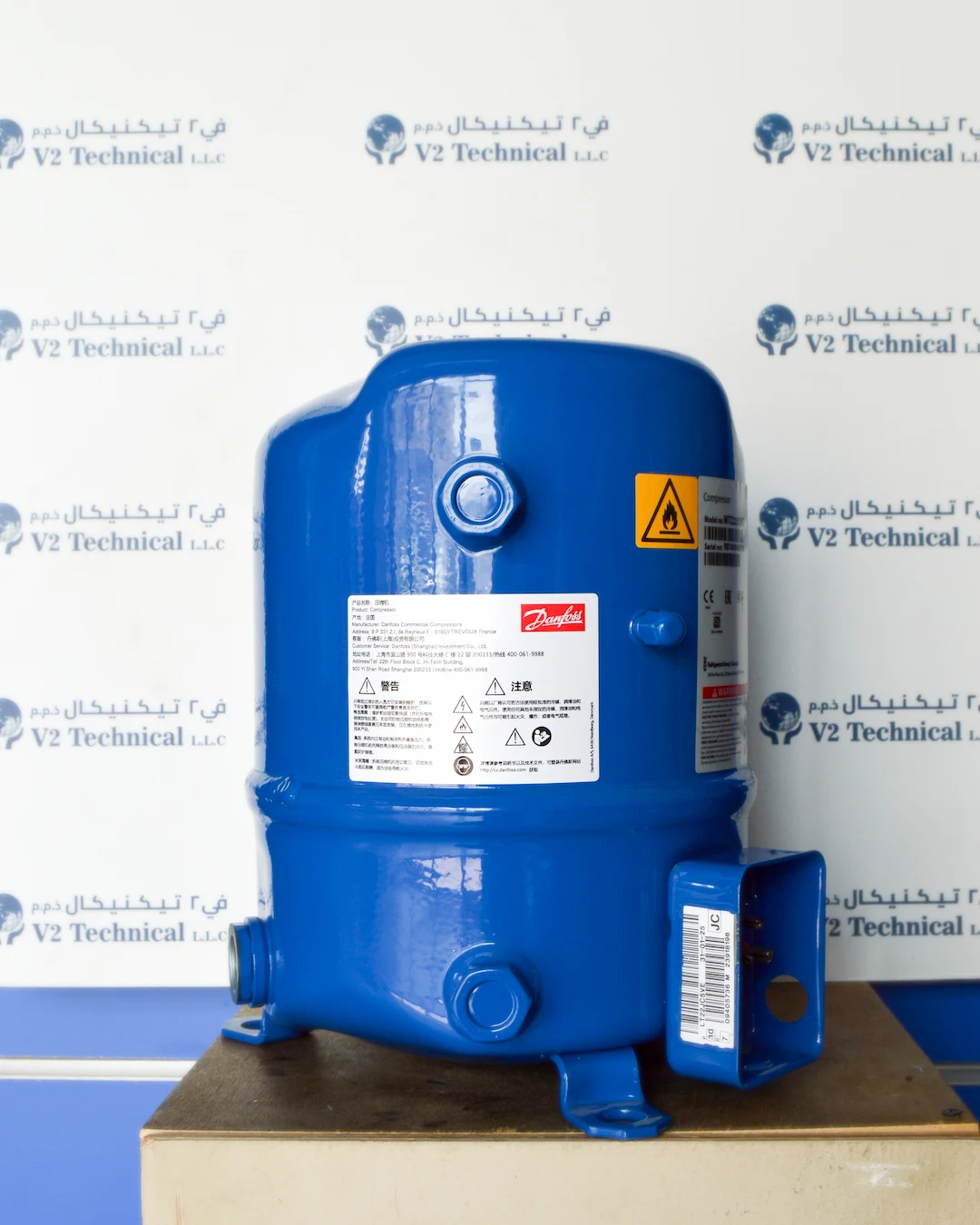

Danfoss Maneurop MTZ22JC5VE Reciprocating Compressor

Description

The Danfoss Maneurop MTZ22JC5VE compressor UAE is a premium quality fully hermetic single-phase reciprocating compressor from Danfoss Maneurop’s trusted MTZ series — one of the most widely used refrigeration compressor platforms in marine, commercial and industrial cooling applications worldwide.

The Danfoss Maneurop MTZ22JC5VE is designed for medium and high evaporating temperature applications including marine refrigeration, air conditioning and heat pumps. With internal motor protection, high-efficiency circular valve design and suction gas cooling, this compressor delivers reliable long-life performance in demanding marine and commercial environments.

Key Specifications (from product label):
– Brand: Danfoss Maneurop
– Model: MTZ22JC5VE (MTZ22-5VM)
– Serial No: RB1009405736
– Power Supply: 220–240V, 1~, 50Hz
– LR Current: 41.0A
– Max Current: 15A
– LP Side Max Pressure (PS): 22.60 bar
– HP Side Max Pressure (PS): 29.40 bar
– TS Max: 70°C
– TS Min: -35°C
– Stroke Volume: 38.12 cm³
– Lubricant: P.O.E. 175PZ
– Cooling: Suction gas cooled
– Connection Type: Valve/Rotolock (DL: 1″, SL: 1″)
– Origin: Made in France
– Cylinders: 1
– Colour: Blue
– Refrigerant Group: 1 & 2

Compatible Refrigerants:
R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R454C, R455A, R513A

Key Features:
– Fully hermetic design — sealed for reliable long-term operation
– Internal motor protection — thermal protection built in
– High-efficiency circular valve design for maximum performance
– Suction gas cooled motor — efficient and reliable in all conditions
– Wide refrigerant compatibility — R134a, R404A, R407C and next-generation refrigerants
– POE 175PZ lubricant pre-charged — ready for installation
– Wide operating temperature range: -35°C to +70°C
– Rotolock valve connections for easy service
– Made in France to Danfoss highest quality standards
– CE, EAC certified

Applications:
– Marine vessel refrigeration and cold storage systems
– Ship air conditioning and chiller compressors
– Commercial cold room and walk-in cooler compressors
– Marine heat pump systems
– Offshore platform refrigeration
– Commercial refrigeration cabinets and display cases

For full technical specifications and documentation, visit the official Danfoss website at www.danfoss.com

V2 Technical LLC is a trusted marine spare parts and refrigeration equipment supplier based in Ajman, UAE with 20+ years of experience supplying vessels across the Middle East, West Africa and Mexico.
