Solenoid Driven Pump

Description

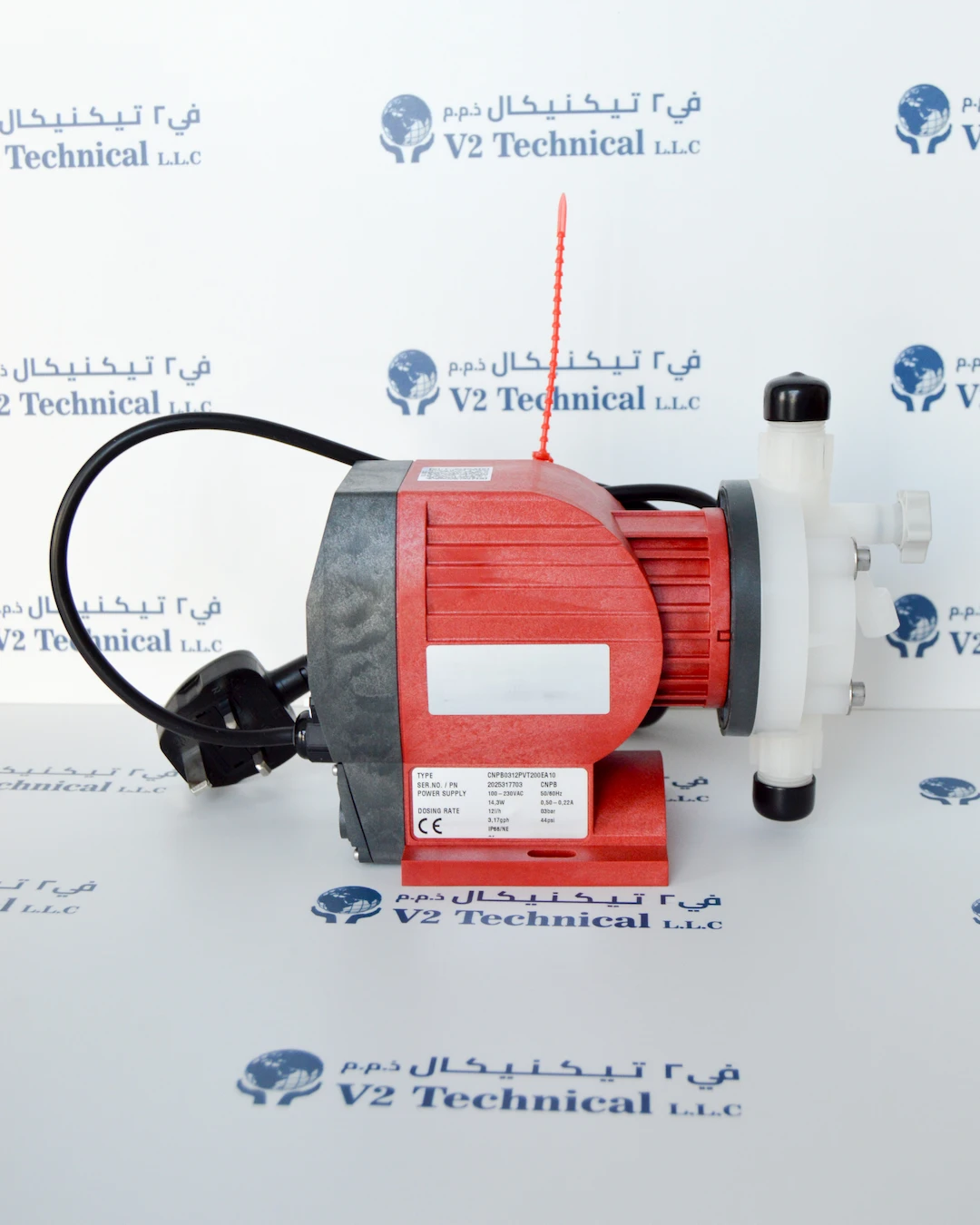

The EMEC CNPB0312PVT200EA10 solenoid driven dosing pump UAE is a high-precision diaphragm metering pump designed for accurate and reliable chemical dosing in marine, industrial and water treatment applications.

This EMEC CNPB0312PVT200EA10 solenoid dosing pump uses an electromagnetic solenoid coil to drive a PVDF diaphragm in a reciprocating motion, displacing a precise volume of liquid on each stroke. Two non-return check valves prevent backflow, ensuring accurate, repeatable dosing of chemicals including disinfectants, corrosion inhibitors, biocides and pH adjustment chemicals.

Key Specifications (as read from product label):
– Brand: EMEC
– Model/Type: CNPB0312PVT200EA10
– Power Supply: 100–230V AC, 50/60Hz
– Power Consumption: 14.3W
– Current: 0.10–0.22A
– Max Dosing Rate: 12 L/h (3.17 gph)
– Max Working Pressure: 44 PSI (3 bar)
– Protection Rating: IP66/NE
– Pump Head Material: PVDF (Polyvinylidene Fluoride)
– CE Certified

Key Features:
– Precise electromagnetic solenoid diaphragm dosing technology
– PVDF pump head — excellent resistance to aggressive chemicals
– IP66 rated — protected against strong water jets and dust ingress
– Universal 100–230V AC power supply — worldwide compatible
– Compact, lightweight design for easy installation

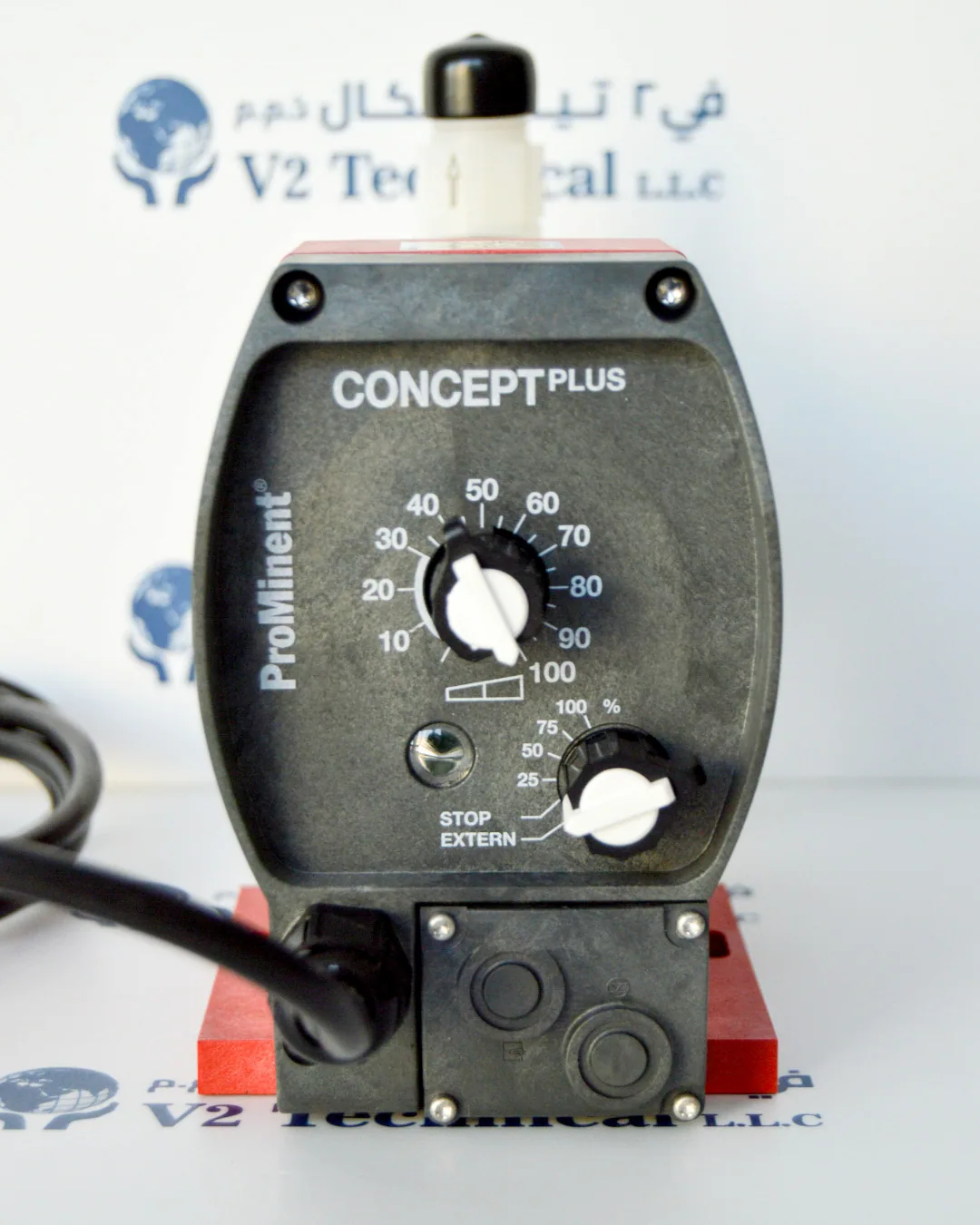

– Adjustable stroke length and frequency for flexible dosing rates
– CE certified to European safety standards
– Low power consumption — energy efficient operation
– Virtually maintenance-free solenoid drive mechanism

Applications:
– Marine vessel water treatment and disinfection systems
– Ballast water chemical dosing
– Cooling water corrosion inhibitor injection
– Marine swimming pool and spa chemical dosing
– Boiler water treatment chemical metering
– Offshore platform water treatment systems
– Industrial chemical injection and process dosing

For full technical documentation and specifications, visit the official EMEC website at www.emecpumps.com
